Description & Operation: Description

  1. Power trunk drive unit (Trunk open)
    G13128952Courtesy of KIA MOTORS AMERICA, INC.
    1. The trunk open switch operates. (Trunk outside handle switch, Crash pad switch, SMK trunk open button)
    2. The power trunk motor operates and motor gear rotates (A).
    3. The sector gear rotates (B).
    4. The drive arm connected to sector gear rotates (C).
    5. The push rod operates (D) in the direction of the arrow.
    6. The end of the push rod pushes up the trunk (E).
  2. Power trunk drive unit (Trunk close)

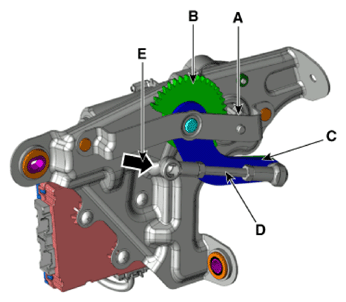

    G13128953Courtesy of KIA MOTORS AMERICA, INC.
    1. The trunk close switch operates.
    2. The power trunk motor operates and motor gear rotates (A).
    3. The sector gear rotates (B).
    4. The drive arm connected to the sector gear rotates (C).
    5. The push rod operates (D) in the direction of the arrow.
    6. The end of the push rod pushes up the trunk (E).
