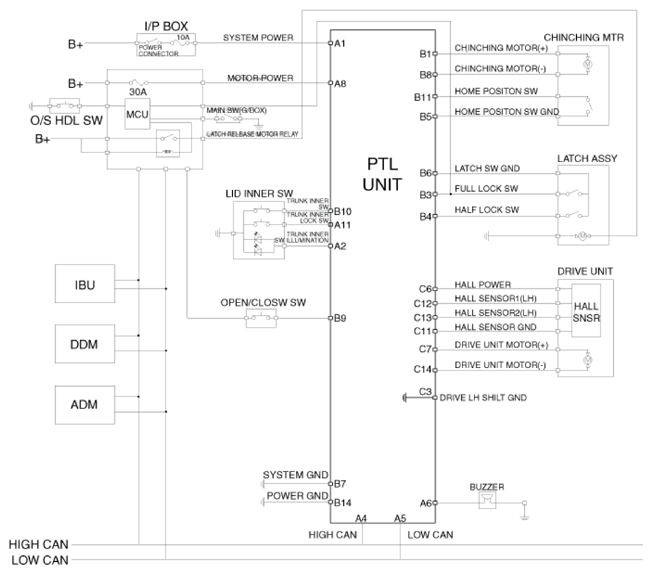

Schematic Diagrams
>>
Connector and Terminal function
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector and Terminal function
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
