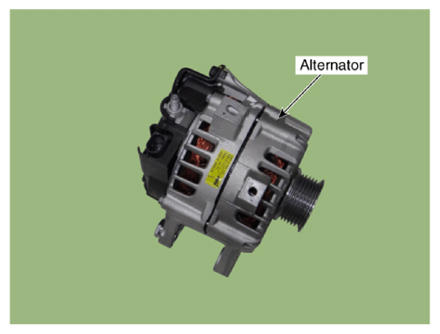

Repair Procedures: Replacement

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")
Remove the turbo manifold module.
(Refer to Engine Mechanical System - "TURBO MANIFOLD MODULE ")

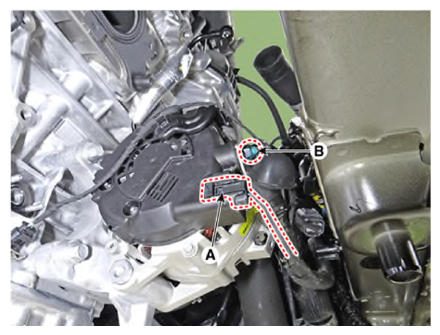

Disconnect the alternator connector (A), and remove the cable (B) from alternator "B" terminal.
Tightening torque:

9.8 - 12.7 N.m (1.0 - 1.3 kgf.m, 7.2 - 9.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

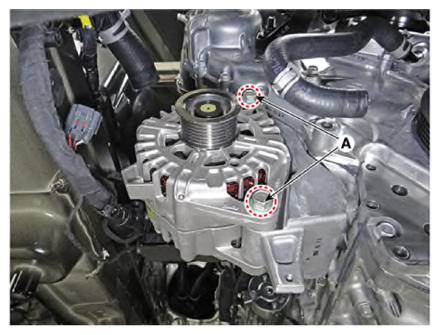

Remove the alternator after loosening the mounting bolts (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
