Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figure below to 5

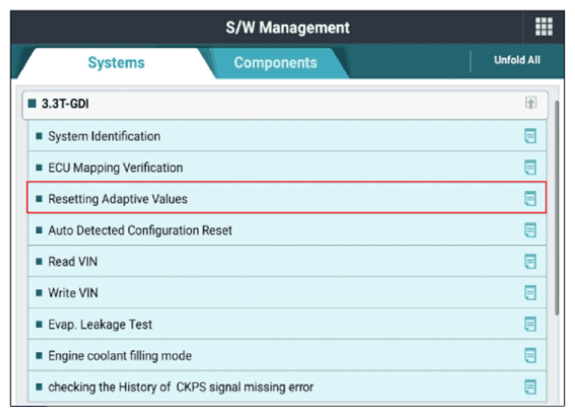

G13132996Courtesy of KIA MOTORS AMERICA, INC.

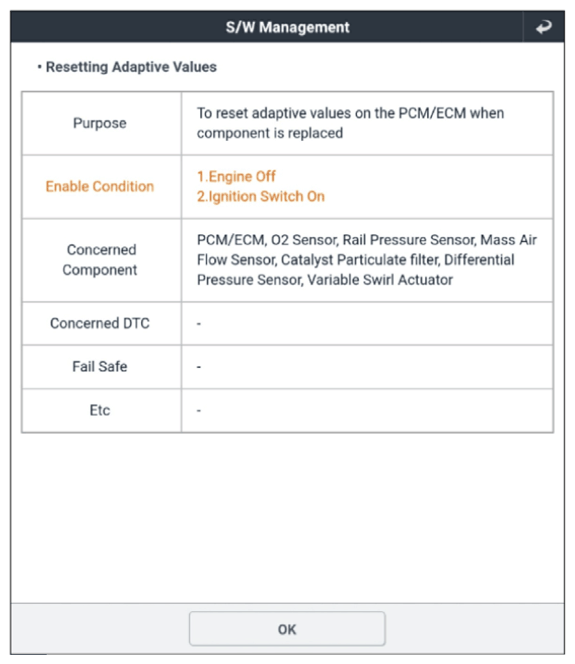

G13132997Courtesy of KIA MOTORS AMERICA, INC.

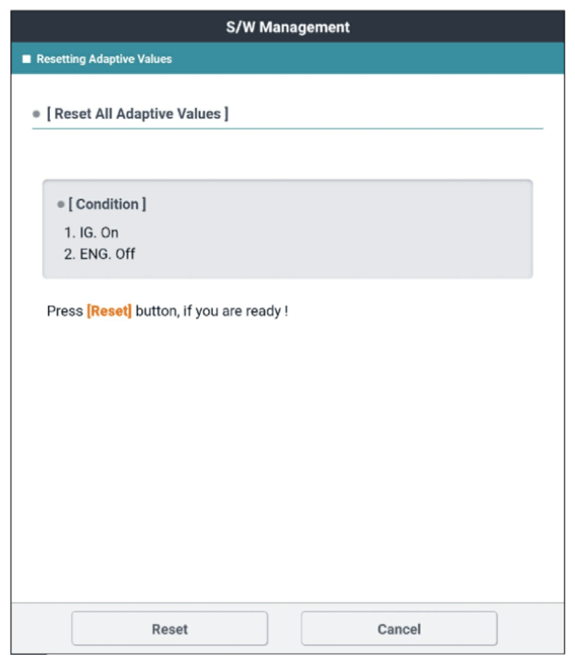

G13132998Courtesy of KIA MOTORS AMERICA, INC.

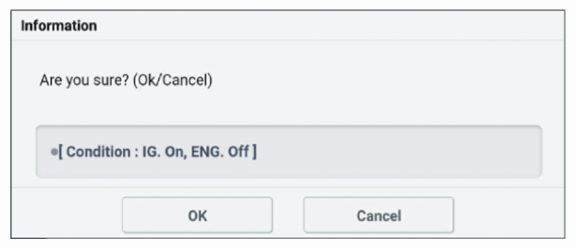

G13132999Courtesy of KIA MOTORS AMERICA, INC.

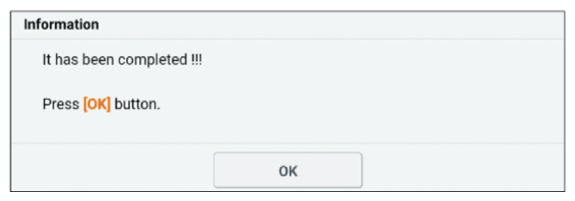

G13133000Courtesy of KIA MOTORS AMERICA, INC.
