Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figure below to 5

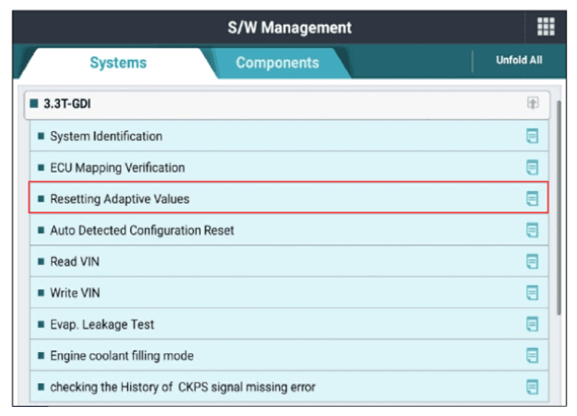

G13133006Courtesy of KIA MOTORS AMERICA, INC.

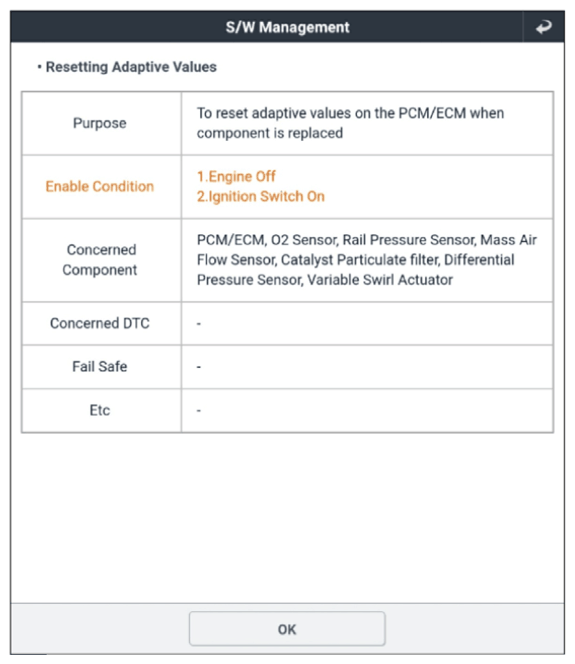

G13133007Courtesy of KIA MOTORS AMERICA, INC.

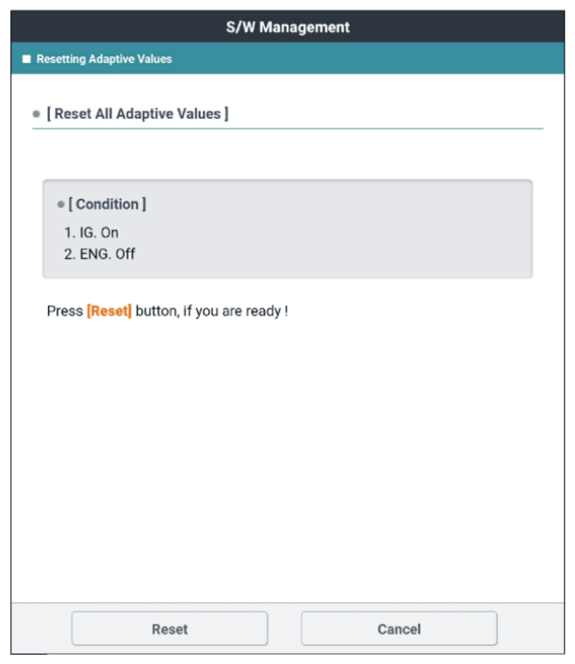

G13133008Courtesy of KIA MOTORS AMERICA, INC.

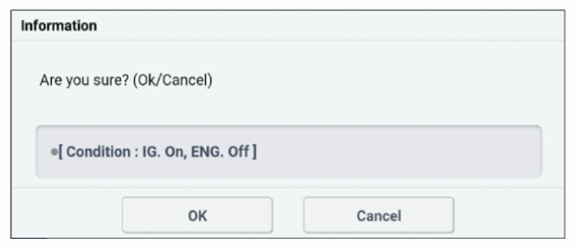

G13133009Courtesy of KIA MOTORS AMERICA, INC.

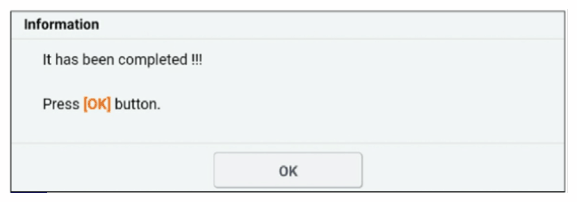

G13133010Courtesy of KIA MOTORS AMERICA, INC.
