Terminal Function

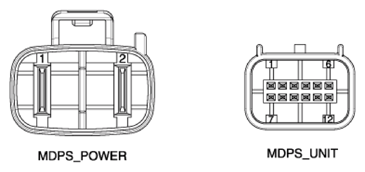

G13144533Courtesy of KIA MOTORS AMERICA, INC.
Type Pin No Description
Battery 1 Battery -
2 Battery +
VSS 1 IGN
2 -
3 -
4 -
5 -
6 -
7 IGN
8 HIGH CAN
9 LOW CAN
10 -
11 -
12 -
