Steering Limit Position Setting

NOTE:
  • Steering Limit Position Setting is must be done when any of cases is met as below.
  • After replacing SCM Unit.
  • After replacing steering.
  • SCM Error (Only 2 second movement while pressing SCM switch)
  1. Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
  2. Select the "vehicle model" and "Steering Column Module" on KDS vehicle selection screen.

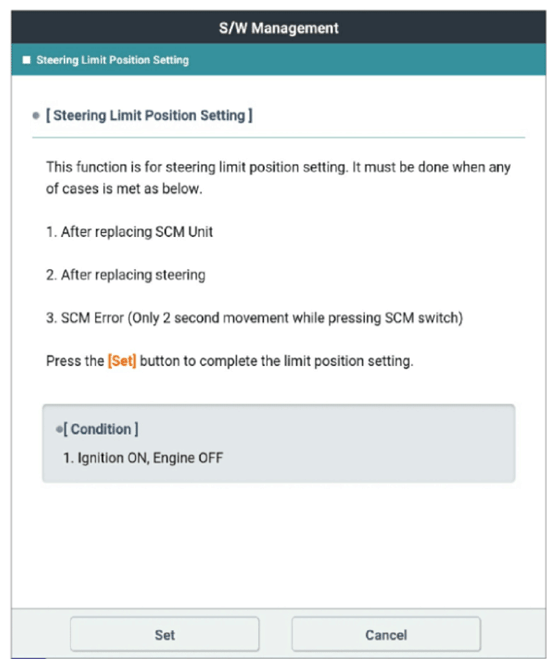

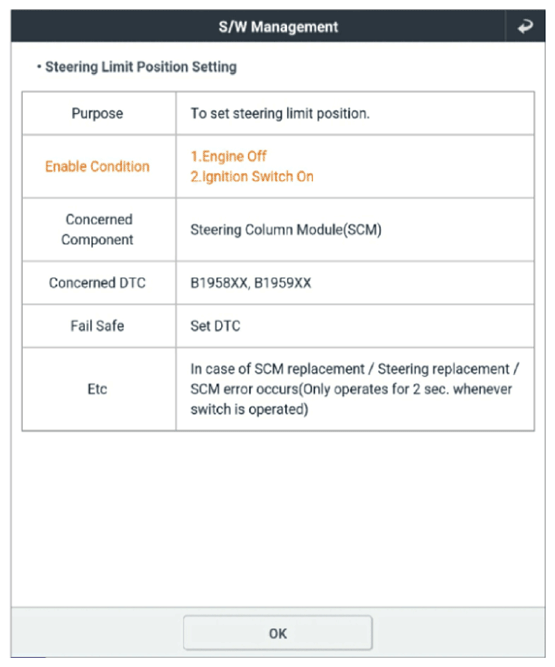

  3. Select the "Steering Limit Position Setting" on KDS screen, then select OK.

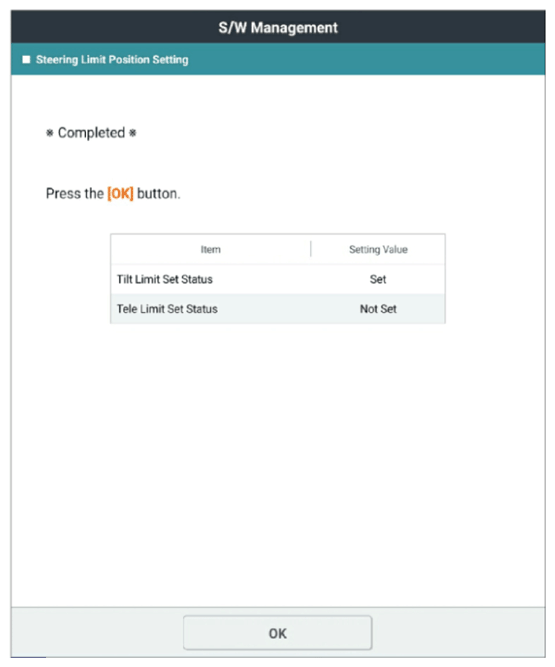

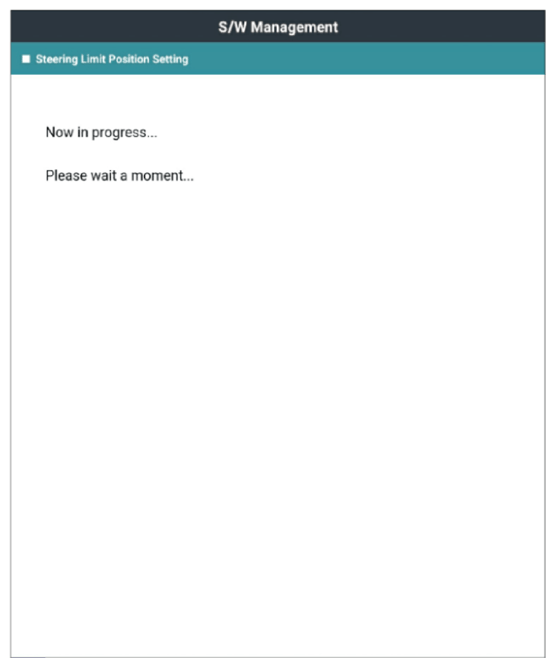

  4. Proceed with the test according to the screen instructions.
G13144565Courtesy of KIA MOTORS AMERICA, INC.
