Repair Procedures: Disassembly

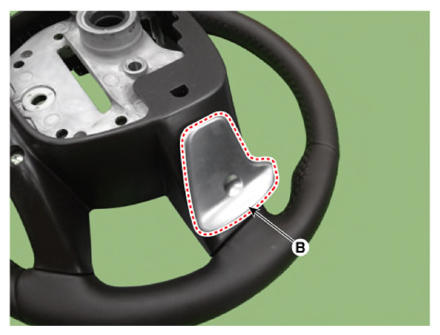

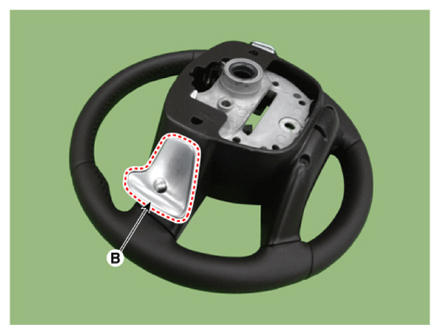

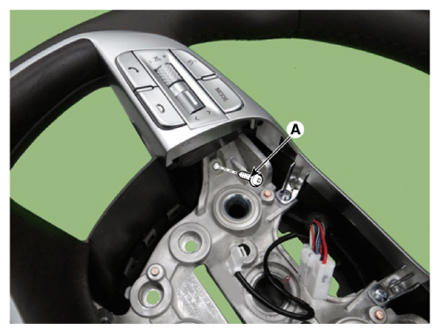

Loosen the screw (A) and then separate the paddle shift (B).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

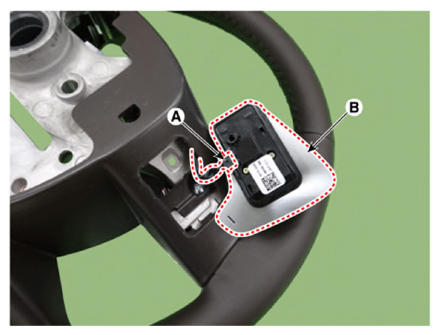

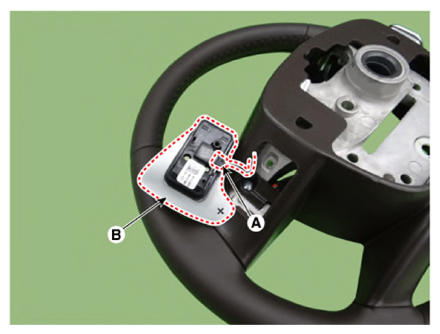

Disconnect the connector (A) and then paddle shift (B).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

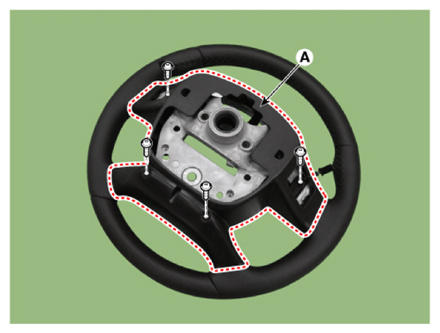

Remove the lower cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

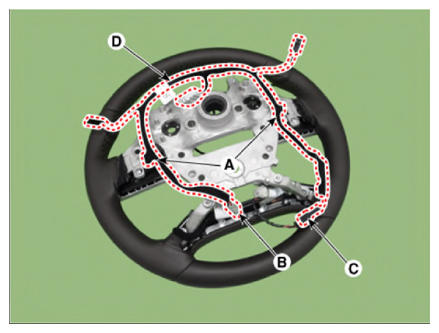

Remove the steering wheel wiring.
1. Disconnect the remote control switch connectors (A).
2. Disconnect the heated steering wheel connector (B).
3. Disconnect the haptic motor connector (C).
4. Remove the steering wheel wiring (D).
Courtesy of KIA MOTORS AMERICA, INC.

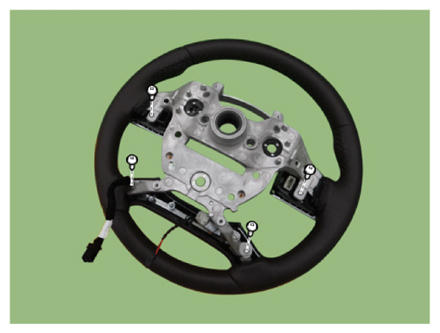

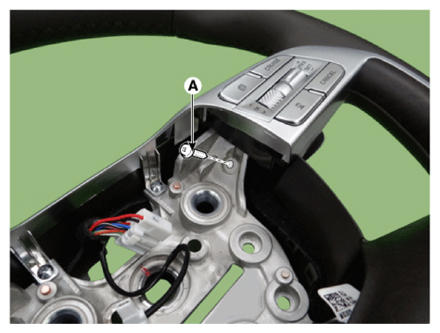

Loosen the screws and then remove the remote control switch assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

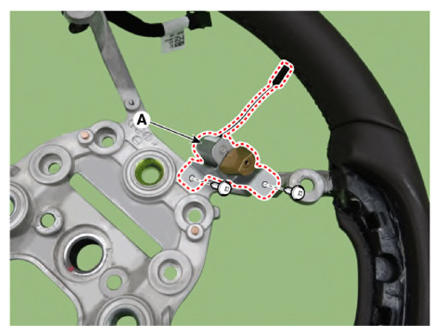

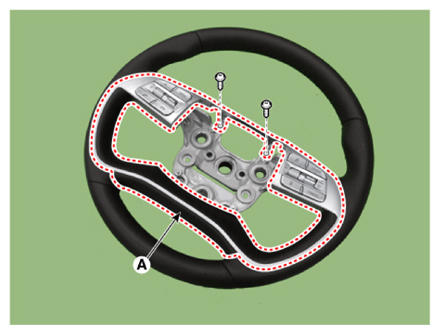

Remove the haptic motor (A).

Courtesy of KIA MOTORS AMERICA, INC.
Assemble in the reverse order of disassembly.
