Repair Procedures: Replacement

Remove the center pillar upper trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")

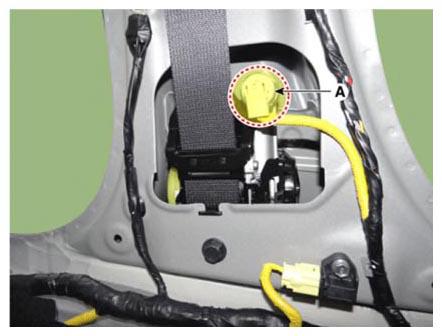

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

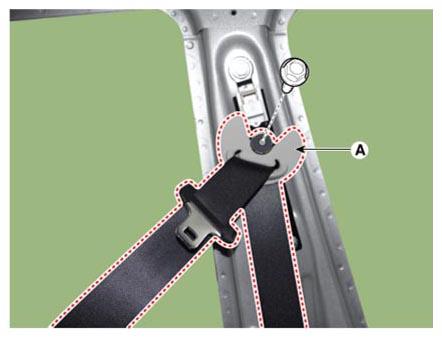

Remove the front seat belt upper anchor (A) after loosening the mounting bolt.
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

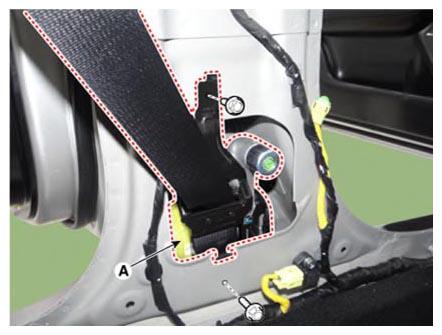

Remove the front seat belt retractor (A) after loosening the bolts.
Tightening torque:

Lower: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

Upper: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connector is plugged in properly.
- Replace any damaged clips.
