BSD Unit Alignment

Rear bumper accident vehicles and vehicles that replaced BSD units must perform BSD unit alignment using KDS.

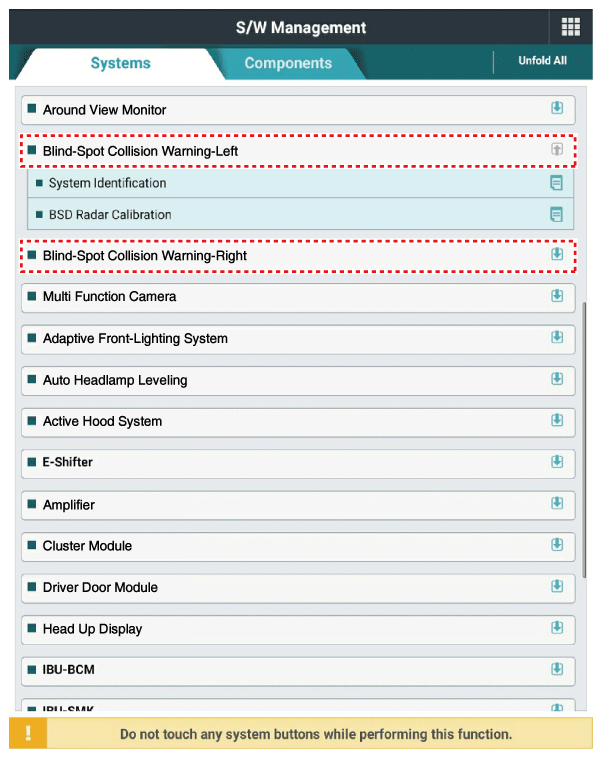

Select "BSD Radar Calibration" procedure in BSD system.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

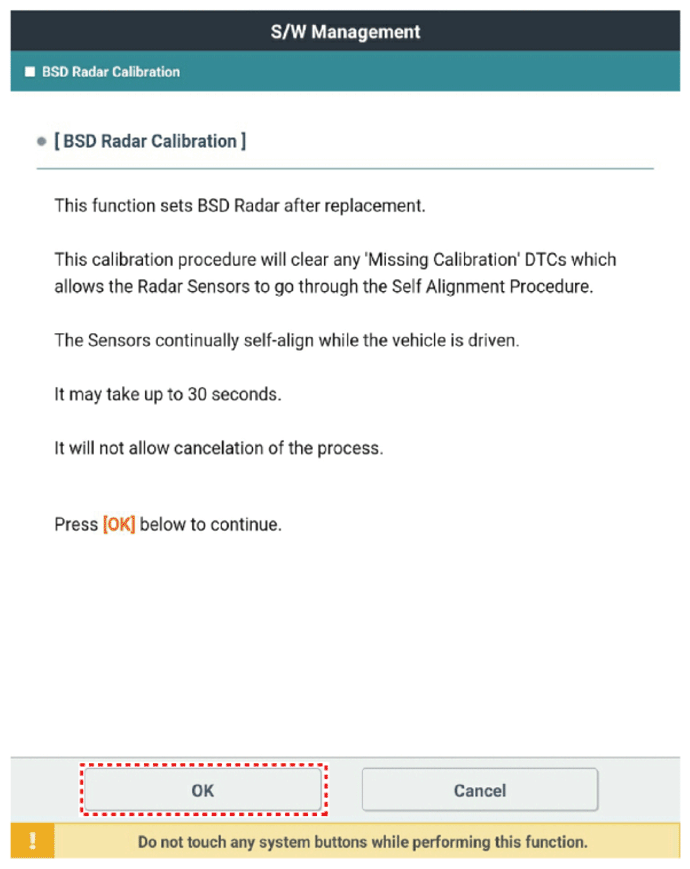

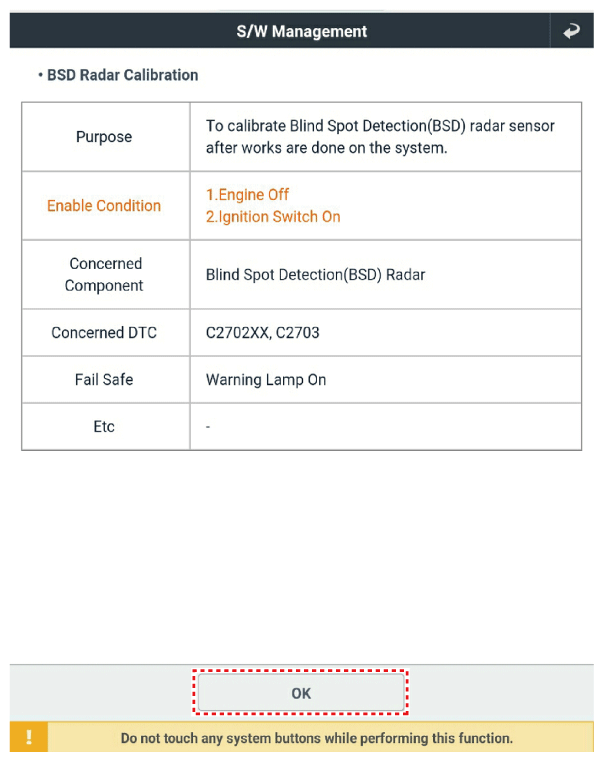

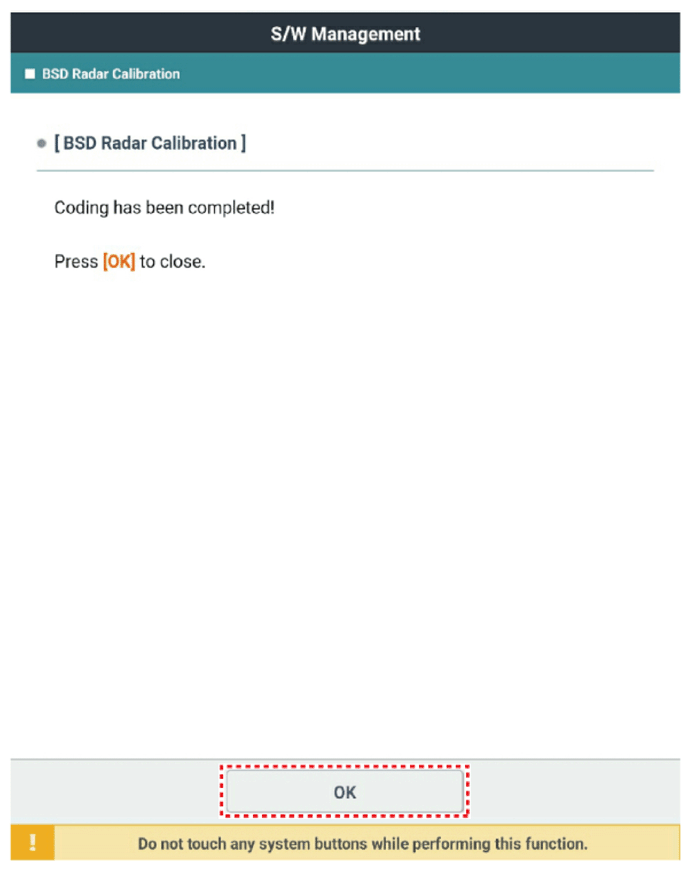

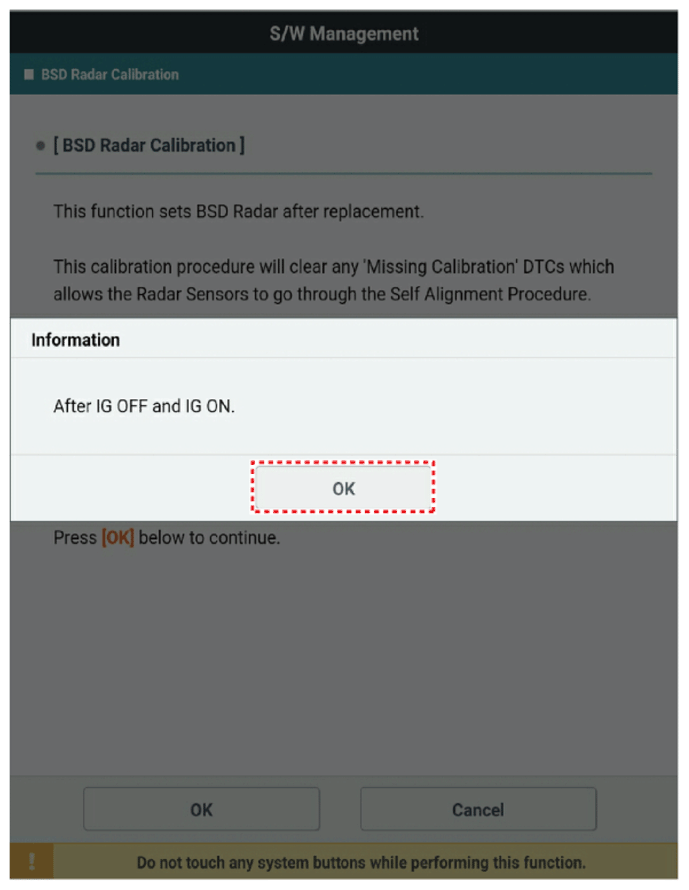

Perform the "BSD Radar Calibration" procedure according to the KDS screen message.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
