Variant coding procedure

Ignition "OFF".
Connect KDS to Data Link Connector (DLC).
Ignition "ON".

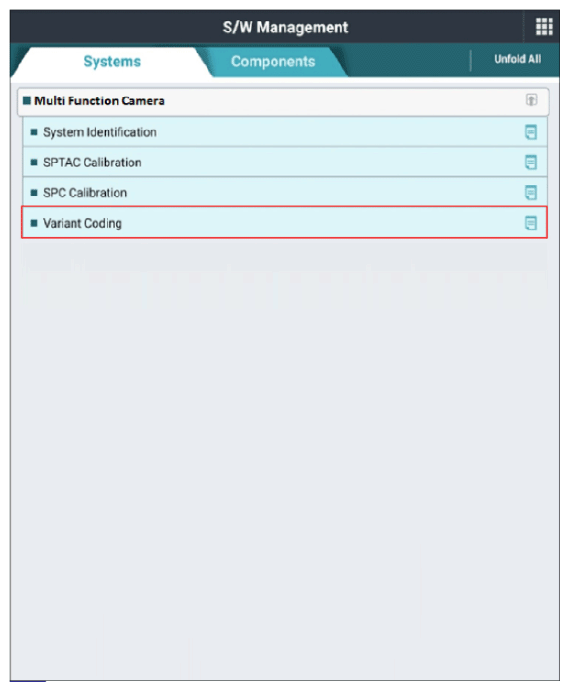

Select "Vehicle S/W Management" on KDS.

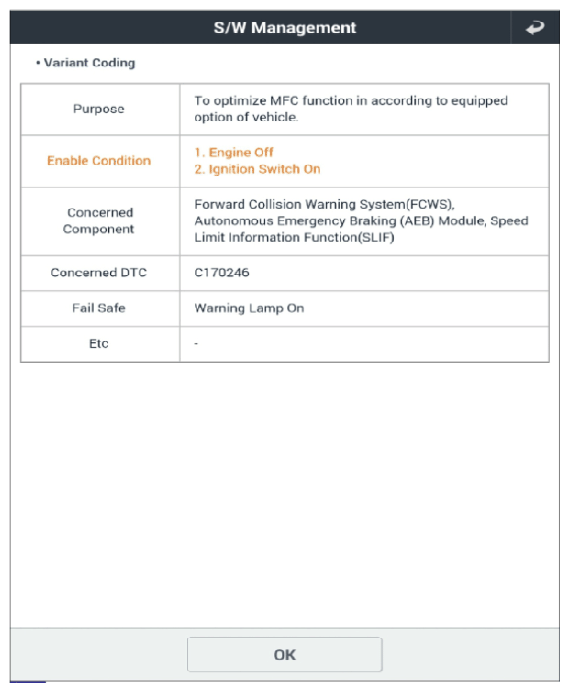

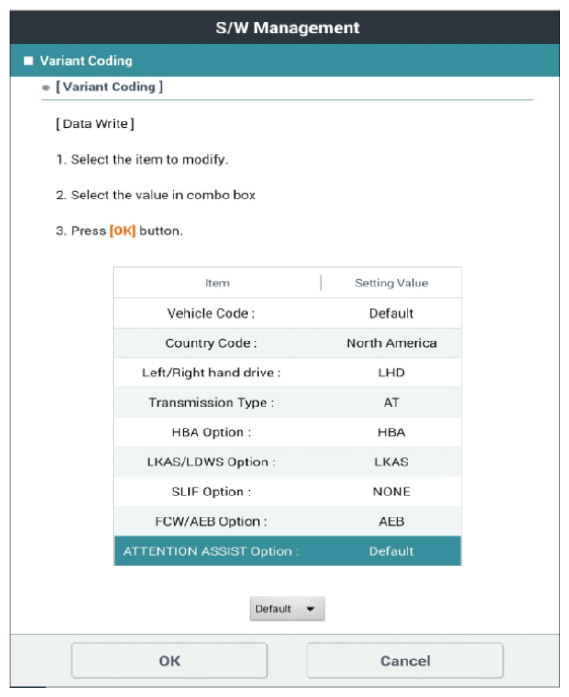

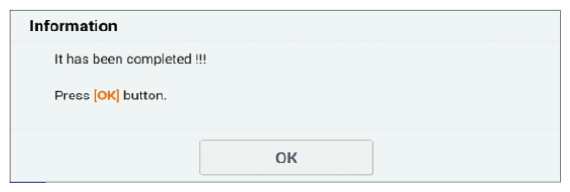

Perform "Variant Coding" in "Vehicle S/W Management" with KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Did the same DTC is stored in the system?
YES
- If no problems still occurs, replace MFC ECU and then go to "VERIFICATION OF REPAIR " procedure.
NO
- If problem still occurs after MFC ECU replacement, re-do this variant coding. Go to "VERIFICATION OF REPAIR " procedure.
