Engine Control System - 1.6L (Except HEV)
>>
ETC (Electronic Throttle Control) System
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

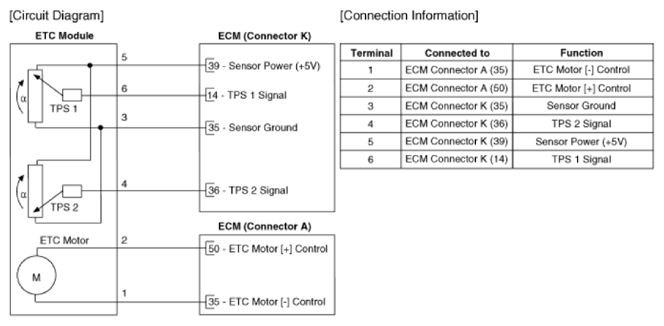

Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

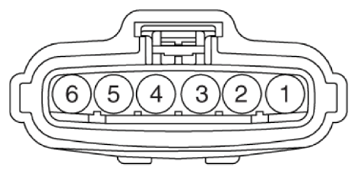

Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
