Resetting Adaptive Values

  1. Connect KDS to DLC (Data Link Cable).
  2. Ignition "ON" & ENG "OFF"
  3. Select the "Vehicle S/W Management" about related DTC with KDS.

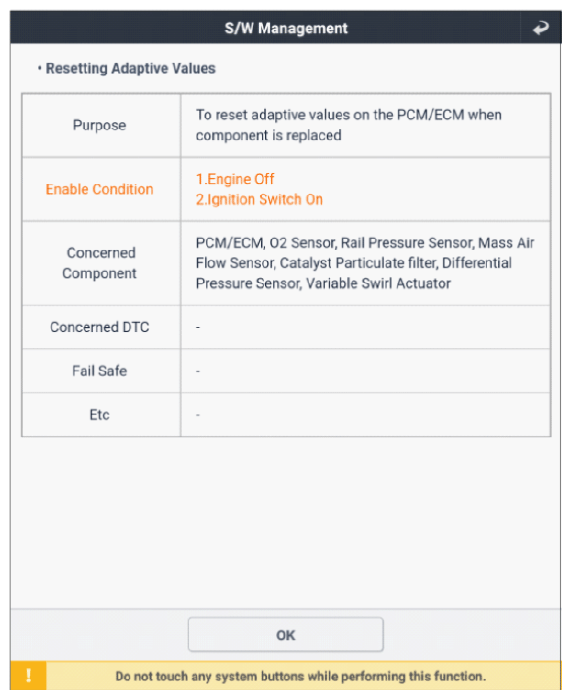

    G12918501Courtesy of KIA MOTORS AMERICA, INC.

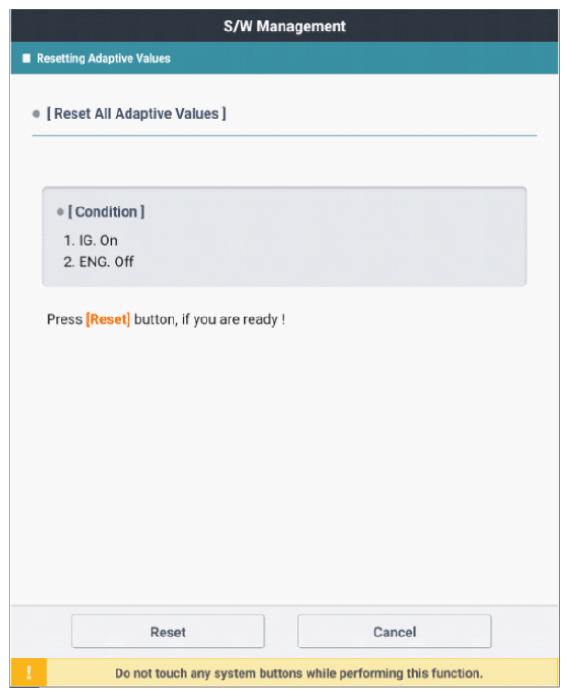

    G12918502Courtesy of KIA MOTORS AMERICA, INC.

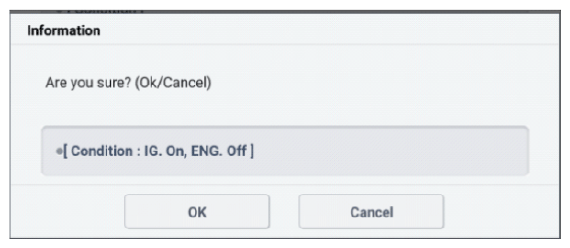

    G12918503Courtesy of KIA MOTORS AMERICA, INC.

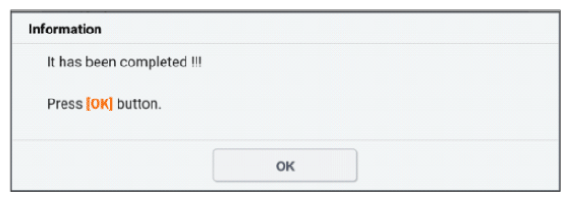

    G12918504Courtesy of KIA MOTORS AMERICA, INC.
  4. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF REPAIR " procedure.
