Check PCSV

Connect KDS to Data Link Connector (DLC).
Ignition "ON" & ENG "OFF"

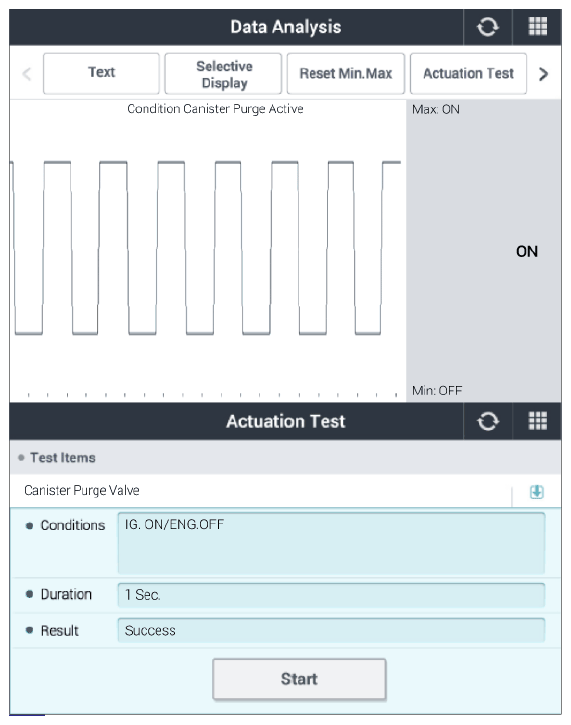

Perform "Actuation Test" for PCSV.

Courtesy of KIA MOTORS AMERICA, INC.
Ignition "OFF"
Disconnect PCSV connector.

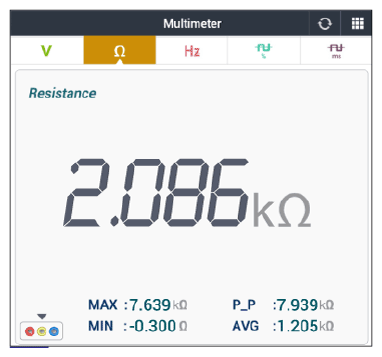

Measure resistance between power and control terminal of the PCSV. (Component Side)
Specification: Approx. 2.0kΩ [20°C (68°F)]

Courtesy of KIA MOTORS AMERICA, INC.

YES
- Go to "CHECK INJECTOR FOR NORMAL OPERATION " as follows.
NO
- Replace it, and go to "VERIFICATION OF REPAIR " procedure.
