Monitor KDS Data

  1. Connect KDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.

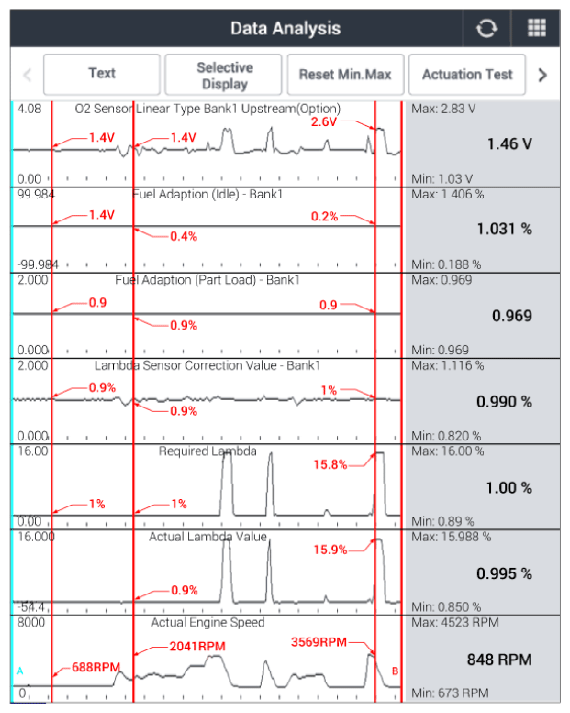

  3. Check the "Current Data" about related DTC with KDS.
    G12922909Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
