Check Battery sensor performance

  1. Ignition "OFF"
  2. Connect CH A probe to LIN signal terminal of battery sensor connector.
  3. Warm up the engine to normal operating temperature.

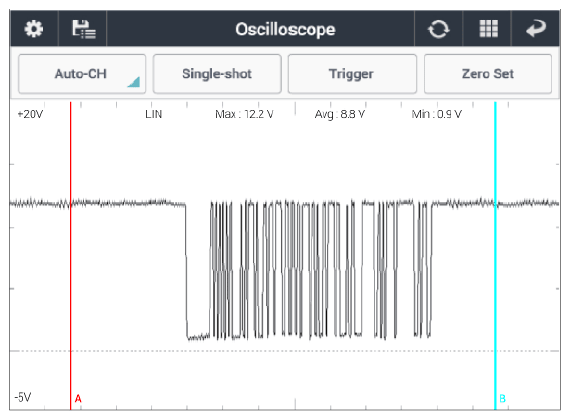

    Specification:  Refer to signal waveform & data

G12923046Courtesy of KIA MOTORS AMERICA, INC.
