Engine Control System Diagnosis (1 Of 6) (PHEV)
>>
DTC P0011-00: 'A (Intake)' Camshaft Position-Timing Over-Advanced or System Performance (Bank 1)
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

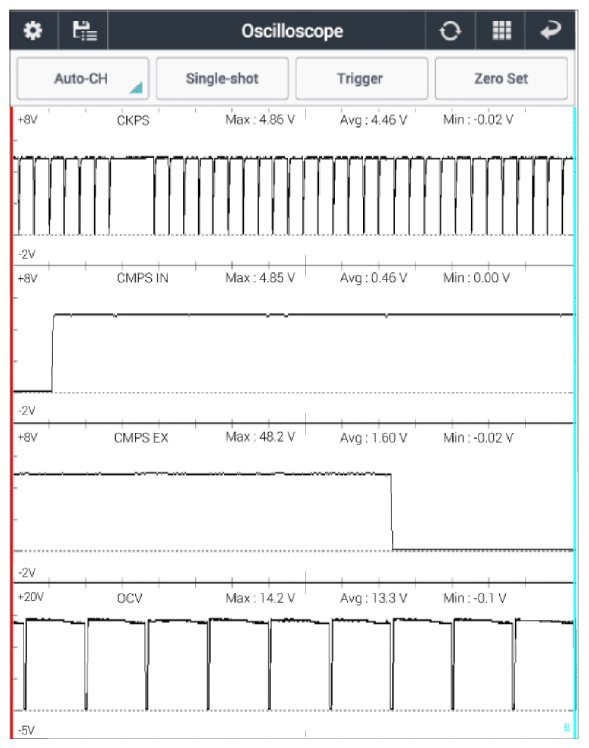

Signal Waveform & Data
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
