Circuit Diagram

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

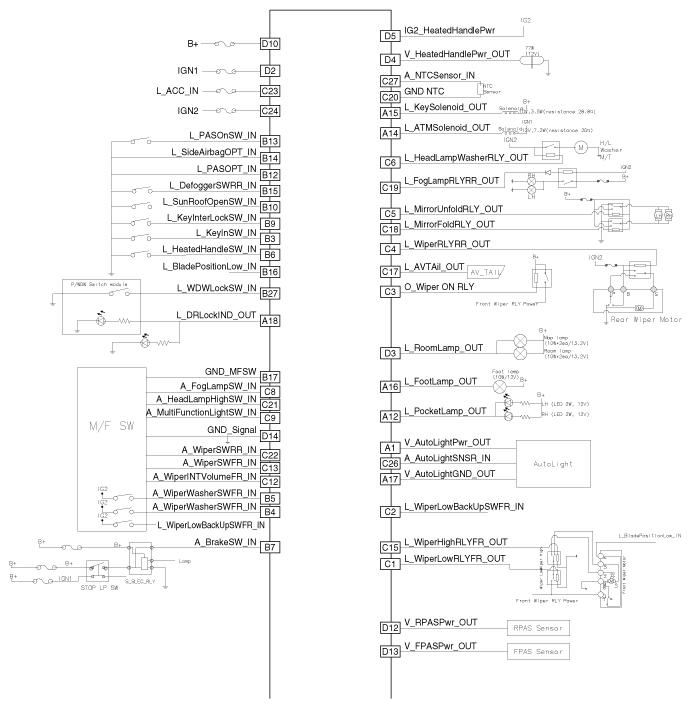

Fig 1: BCM Circuit (1 Of 2)
G12312106Courtesy of KIA MOTORS AMERICA, INC.

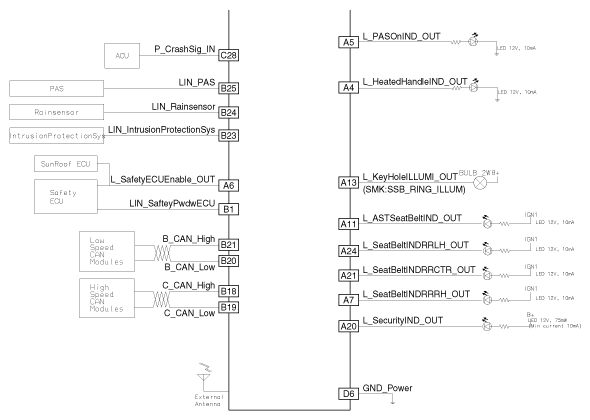

Fig 2: BCM Circuit (2 Of 2)
G12312107Courtesy of KIA MOTORS AMERICA, INC.
