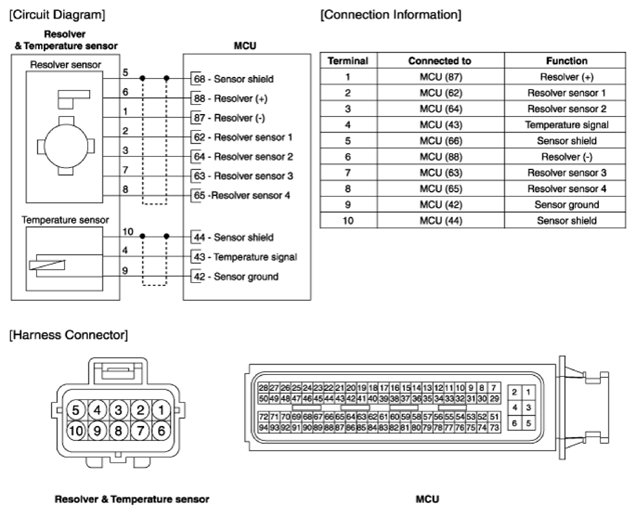

Temperature Sensor (HSG)

WARNING: This page is about a different variant/trim than selected.
G13159453Courtesy of KIA MOTORS AMERICA, INC.
