Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the front bumper.
(Refer to Body - "FRONT BUMPER COVER ")

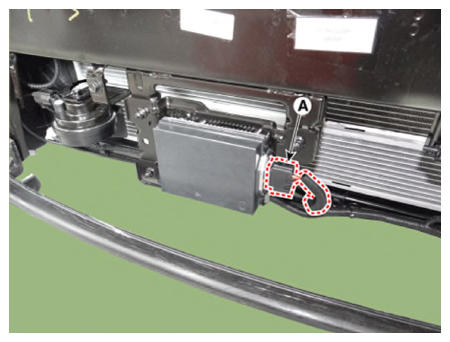

- Disconnect the ASCC radar & unit connector (A).

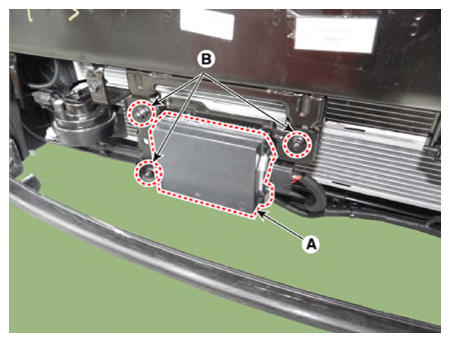

- Remove the ASCC radar & ECU (A) after loosening the mounting nuts (B).
