Cluster module variant coding

  1. Verify vehicle options and have VIN code in hand.
  2. Perform "CLU Variant Coding" in the "Vehicle S/W Management" with KDS.
  3. Check for DTCs in the system.

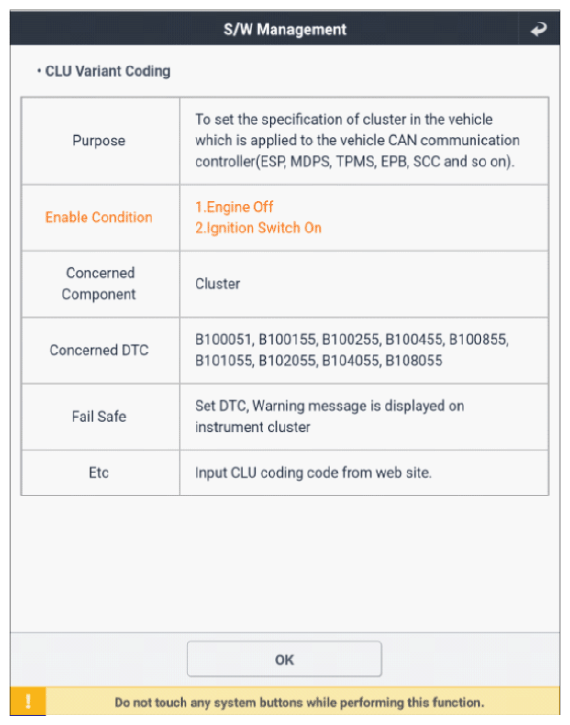

    G12915608Courtesy of KIA MOTORS AMERICA, INC.

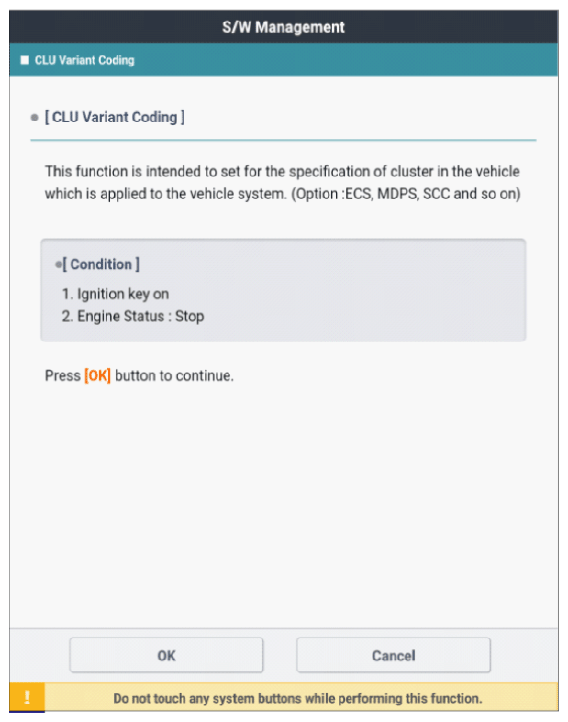

    G12915609Courtesy of KIA MOTORS AMERICA, INC.

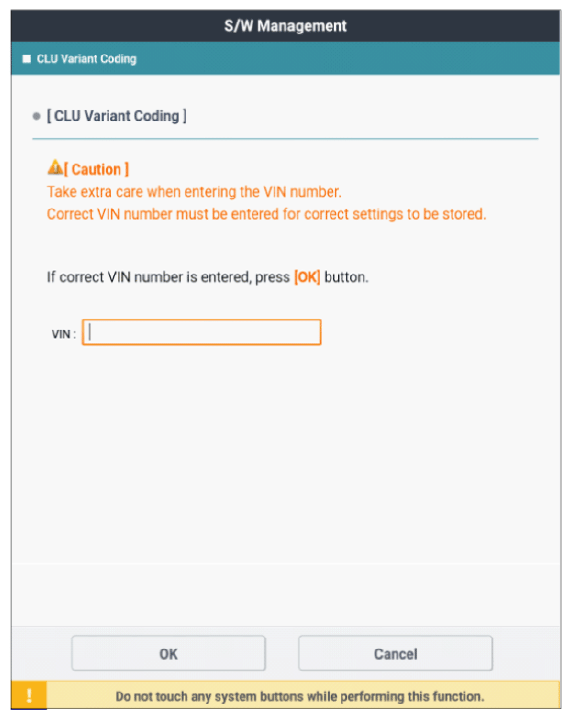

    G12915610Courtesy of KIA MOTORS AMERICA, INC.

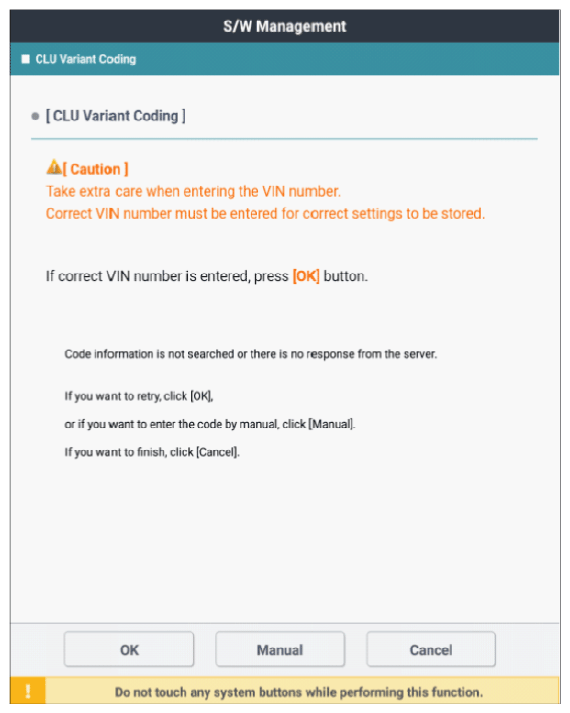

    G12915611Courtesy of KIA MOTORS AMERICA, INC.

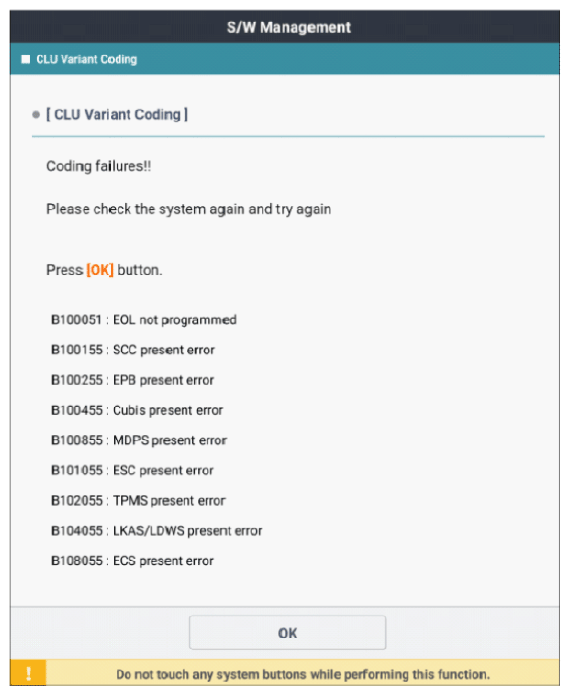

    G12915612Courtesy of KIA MOTORS AMERICA, INC.

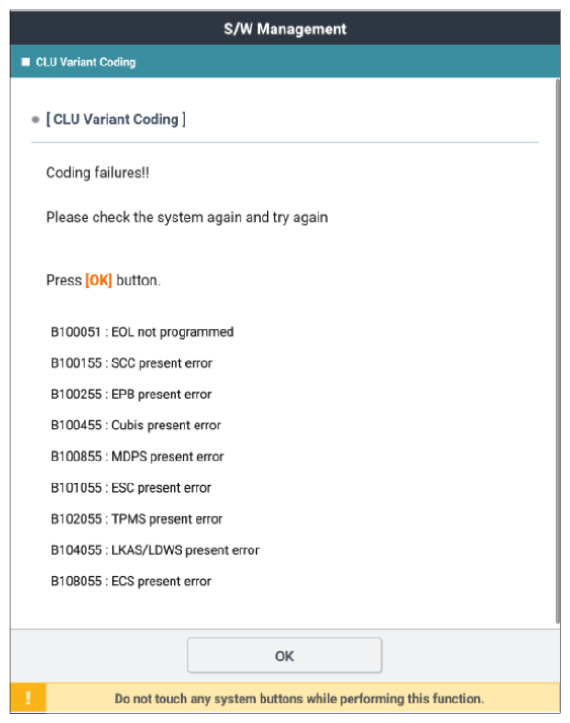

    G12915613Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the DTCs stored in the system as a present?

    YES

    • Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
