Monitor DTC Status

  1. Connect KDS to Data Link Connector (DLC).
  2. Ignition "ON"
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

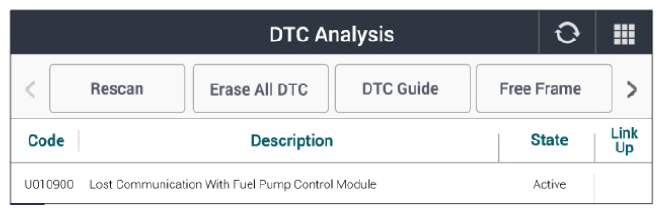

    G12919683Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    • Go to "WIRING INSPECTION" procedure.

    NO

    • Go to "VERIFICATION OF REPAIR" procedure.
