Monitor DTC Status

  1. Connect KDS to Data Link Connector (DLC).
  2. Ignition "ON".

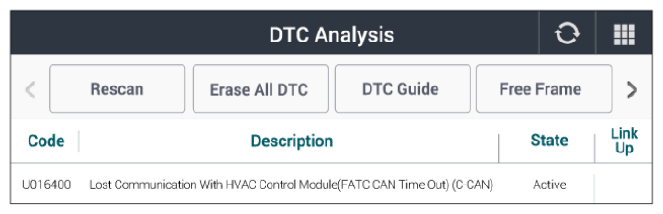

  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
    G12926554Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    NO
