Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

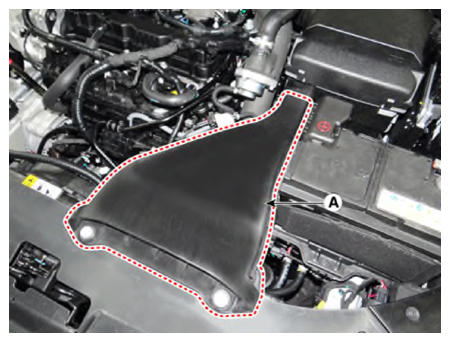

  2. Remove the air duct (A).
    G12922280Courtesy of KIA MOTORS AMERICA, INC.

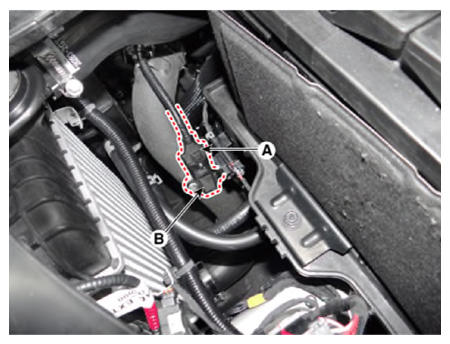

  3. Disconnect the barometric pressure sensor connector (A).
  4. Remove the mounting bolt (B), and then remove the sensor from the intercooler outlet pipe.
G12922281Courtesy of KIA MOTORS AMERICA, INC.
