Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the fuel tank.

    (Refer to "FUEL TANK ")

  3. Disconnect the fuel tank pressure sensor connector.

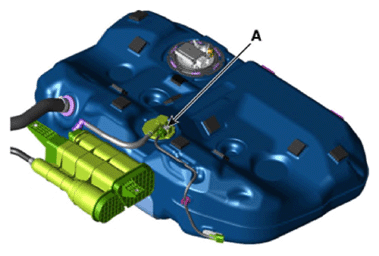

  4. Disconnect the fuel tank pressure sensor (A).
G12922340Courtesy of KIA MOTORS AMERICA, INC.
