Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")

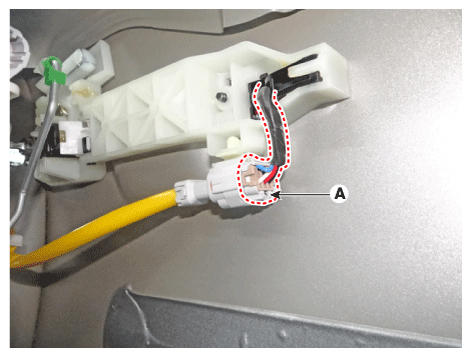

Disconnect the front door outside handle connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front door latch rod (A).

Courtesy of KIA MOTORS AMERICA, INC.

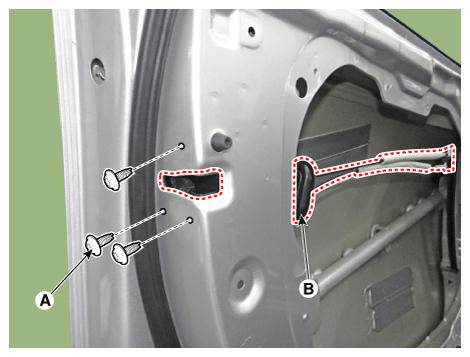

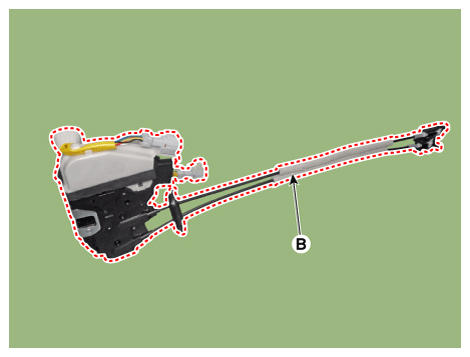

Remove the front door latch (B) after loosening the mounting screw (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Make sure that the connector is connected properly.
Make sure that the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
