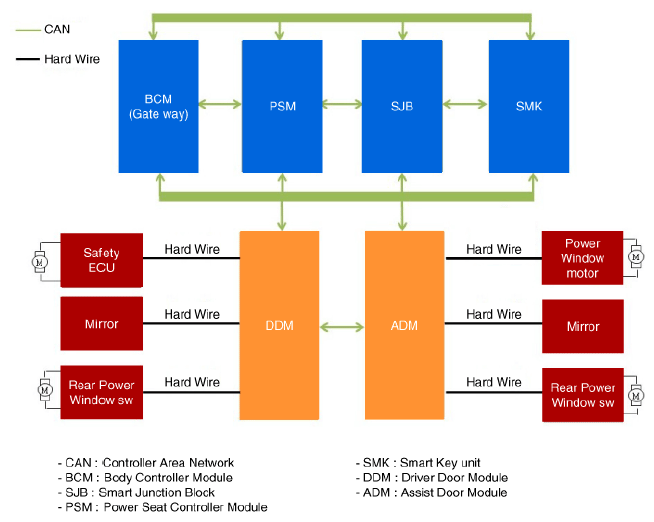

System Diagram

WARNING: This page is about a different variant/trim than selected.
G13080886Courtesy of KIA MOTORS AMERICA, INC.
