Driver Power Window Switch: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left door trim.

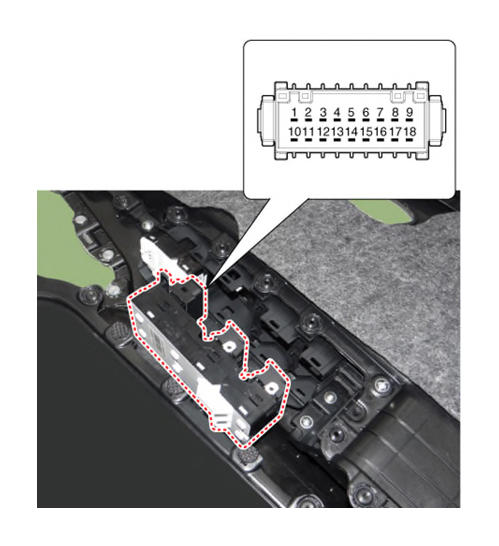

  3. Disconnect the power window switch connector from the door trim.
    G12580108Courtesy of KIA MOTORS AMERICA, INC.
  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
