Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 5 below.

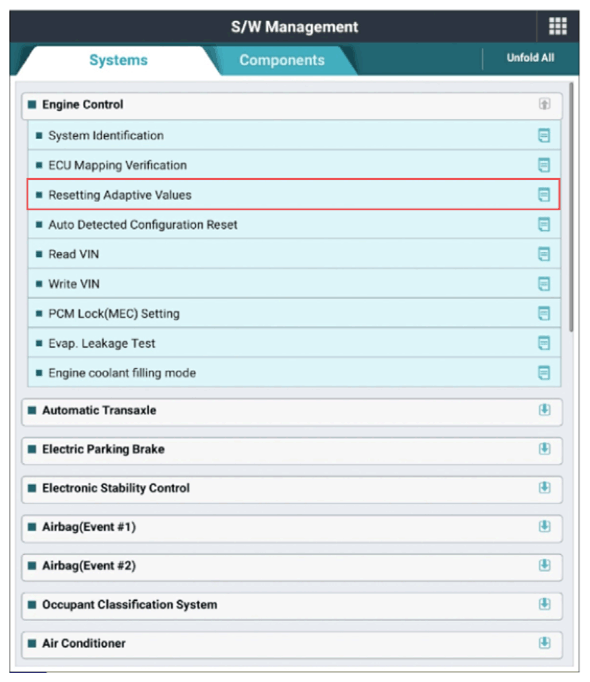

G13051290Courtesy of KIA MOTORS AMERICA, INC.

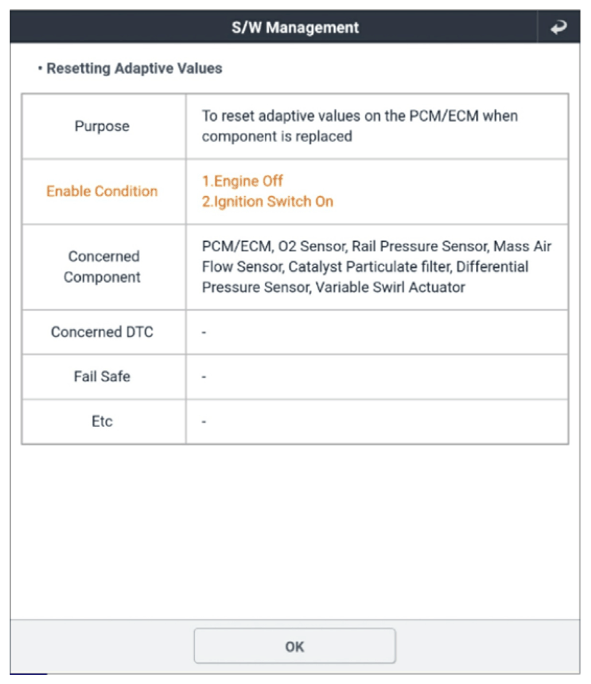

G13051291Courtesy of KIA MOTORS AMERICA, INC.

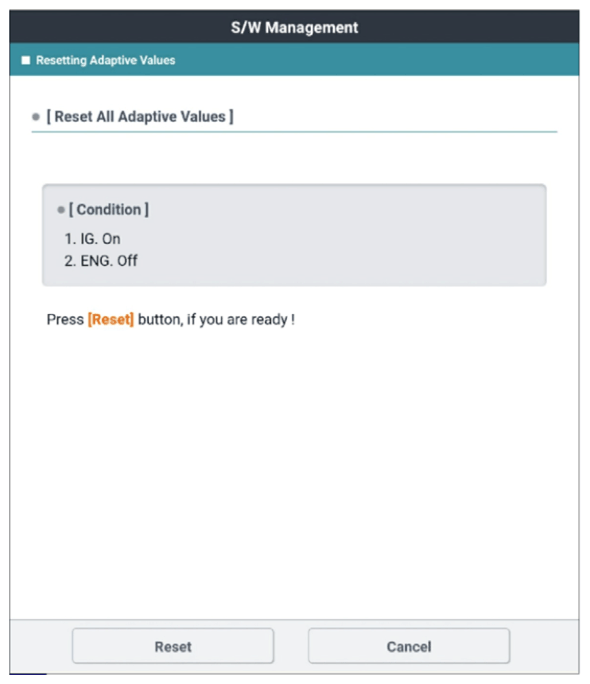

G13051292Courtesy of KIA MOTORS AMERICA, INC.

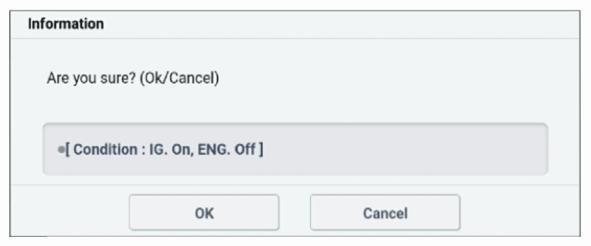

G13051293Courtesy of KIA MOTORS AMERICA, INC.

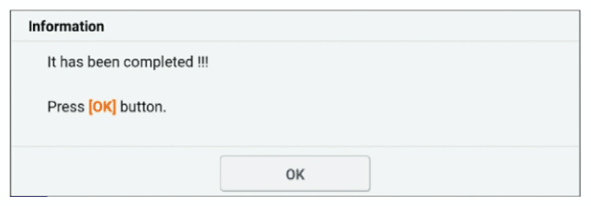

G13051294Courtesy of KIA MOTORS AMERICA, INC.
