Repair Procedures: Inspection

  1. Connect KDS to Data Link Connector (DLC).
  2. Engine "ON"

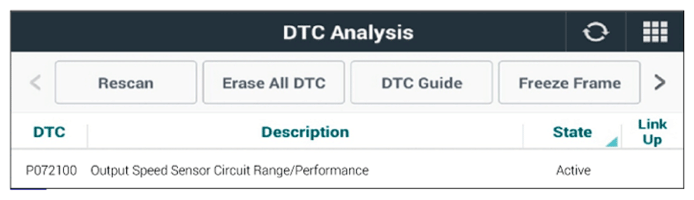

  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
    G12850094Courtesy of KIA MOTORS AMERICA, INC.

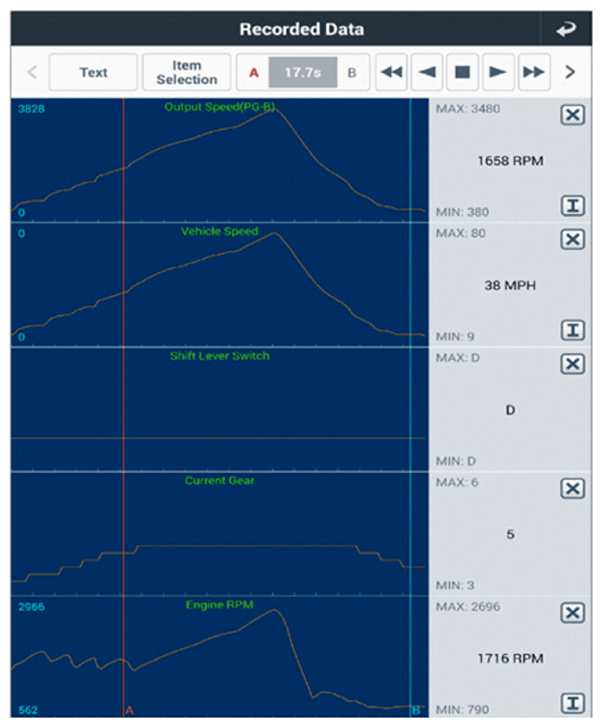

  4. Monitor "Output Speed (PG-B)", "Shift Lever Switch", "Vehicle Speed" and "Engine RPM" parameter in "Current Data" with KDS.
    G12850095Courtesy of KIA MOTORS AMERICA, INC.
