Accelerator Position Sensor (APS): Specifications: Specifications

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
ACCELERATOR POSITION SENSOR (APS) SPECIFICATIONS

Accelerator Position Output Voltage (V)
APS1 APS2
C.T 0.7 - 0.8 0.275 - 0.475
W.O.T 3.8 - 4.4 1.75 - 2.35

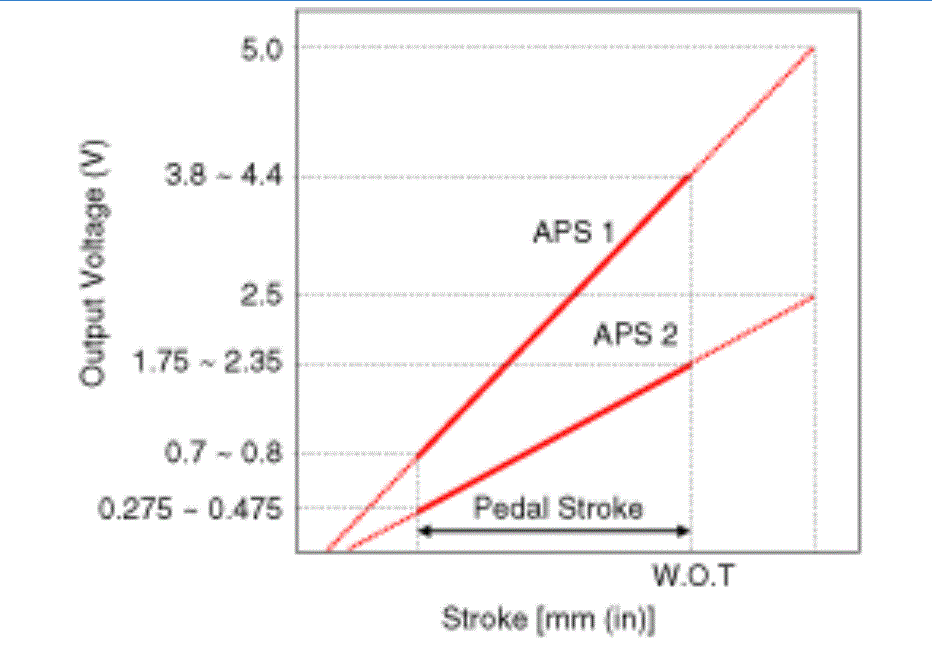

G12598540Courtesy of HYUNDAI MOTOR AMERICA
