Variant Coding

Connect the KDS to the Data Link Connector.
Turn the Ignition "ON".
Select Vehicle Name and System.
Select the Variant Coding.
Perform Variant Coding according to the instructions on the screen.

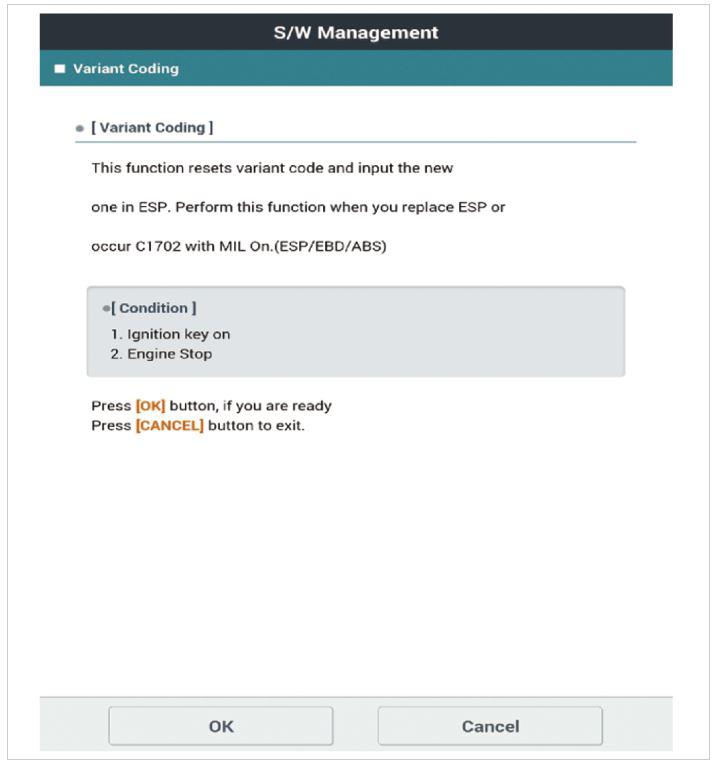

Fig 1: Scantool Display - Variant Coding (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

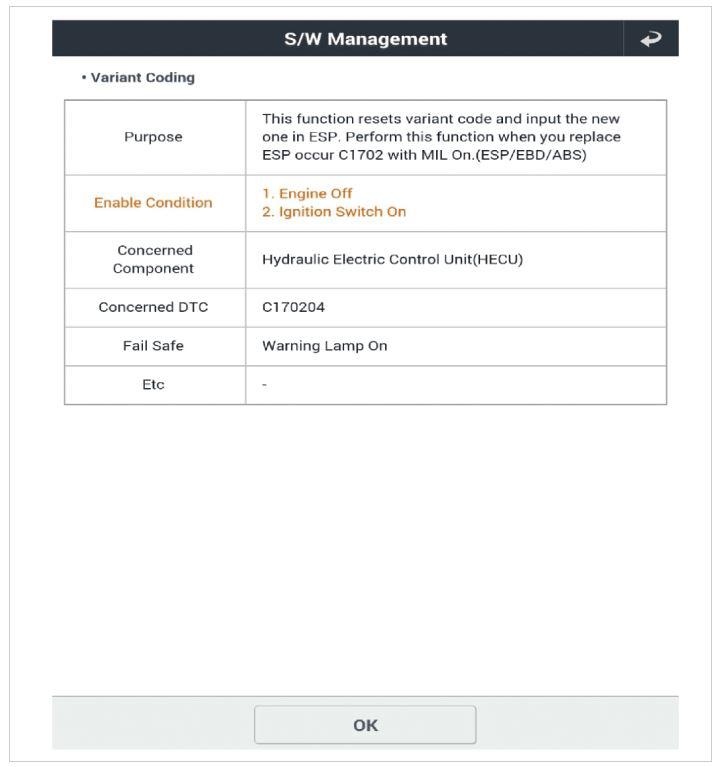

Fig 2: Scantool Display - Variant Coding (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - Variant Coding (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Ignition "OFF" and then Ignition "ON".
The Variant Coding is completed.
