Components And Components Location: Component

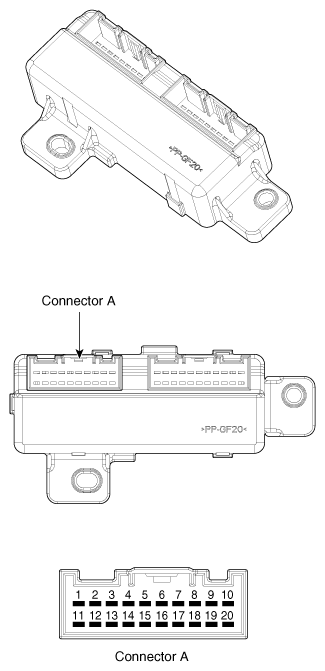

Fig 1: ICM (Integrated Circuit Module) Relay Box Connector Location
G12235419Courtesy of KIA MOTORS AMERICA, INC.
