Check CVVT Intake Assembly

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON"
  3. Perform "Actuation Test"  for CVVT Intake

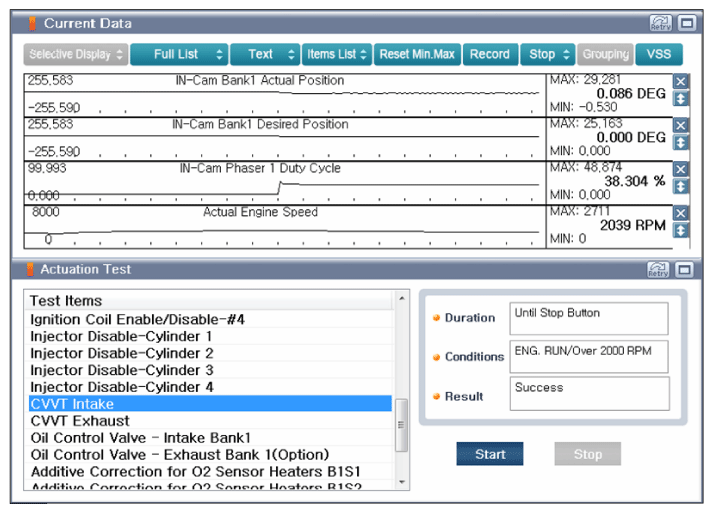

    Fig 1: Scantool Display - CVVT Intake Actuation Test
    G12211580Courtesy of KIA MOTORS AMERICA, INC.
  4. Does the CVVT operate properly? (Check variation)

    YES

    NO

    • Carefully re-do this troubleshooting guide steps.
    • If problem still occurs, replace CVVT and then go to "Verification of Vehicle Repair " procedure.
