Resetting Adaptive Values

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "OFF".
Select the "Vehicle S/W Management" for related DTC with KDS/GDS.

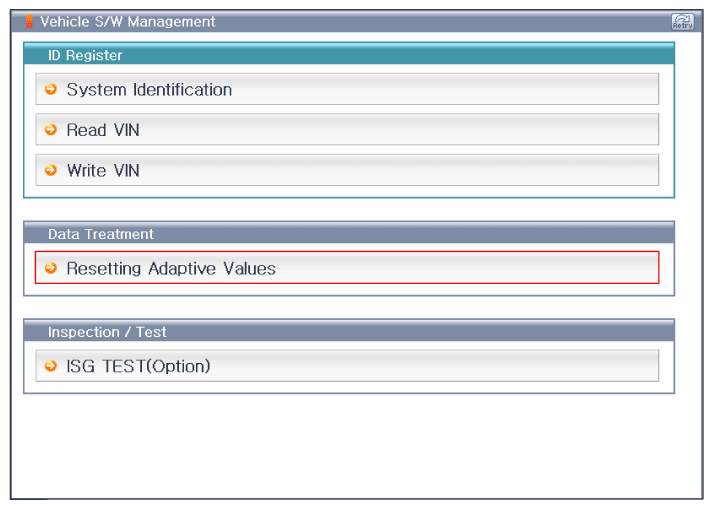

Fig 1: Scantool Display - Selecting Resetting Adaptive Values To Reset TPS Values
Courtesy of KIA MOTORS AMERICA, INC.

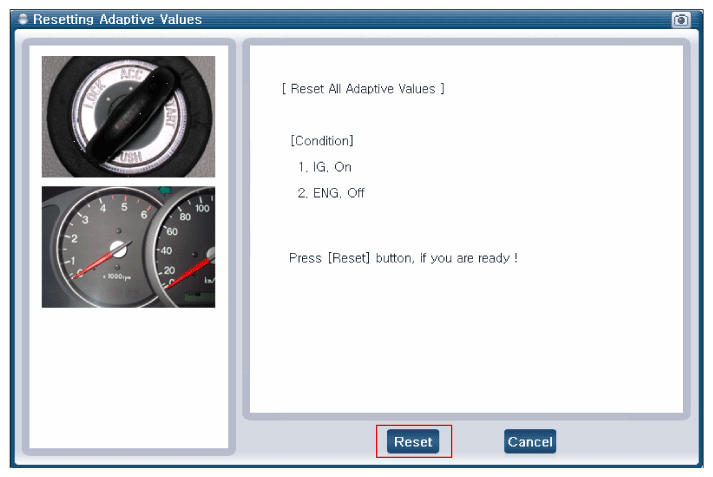

Fig 2: Scantool Display - Selecting Reset Button To Continue To Next Procedure
Courtesy of KIA MOTORS AMERICA, INC.

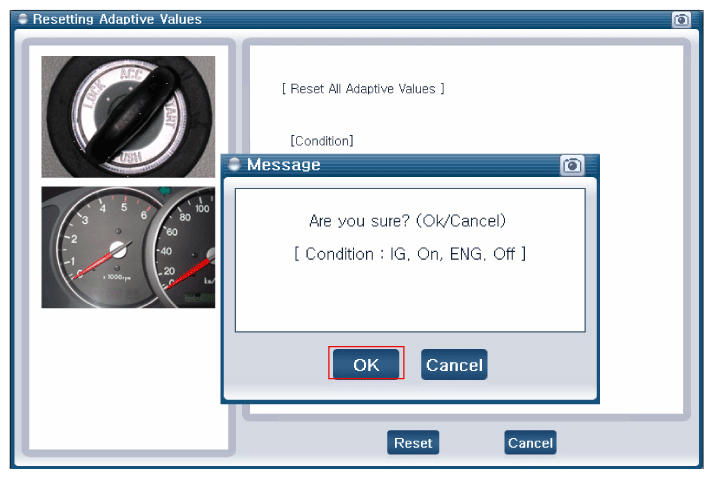

Fig 3: Scantool Display - Selecting OK Button (IG ON, ENG OFF)
Courtesy of KIA MOTORS AMERICA, INC.

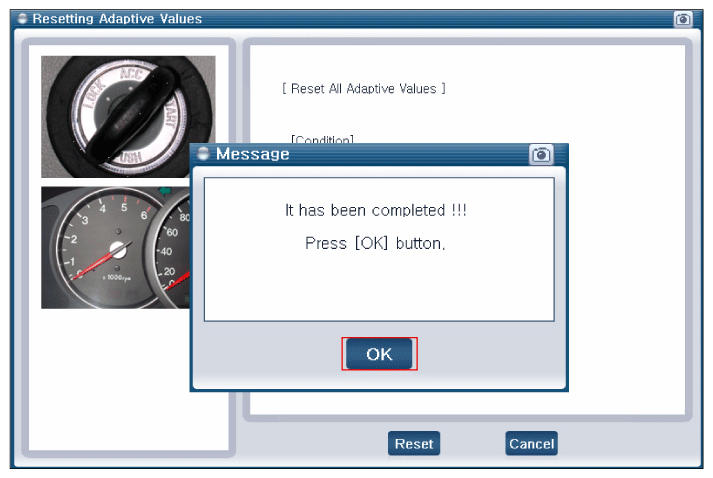

Fig 4: Scantool Display - Reset Values Completed
Courtesy of KIA MOTORS AMERICA, INC.
When the "Resetting Adaptive Values" has properly completed, select "OK" button and go to "Verification of Vehicle Repair " procedure.
