Component Inspection: Notes

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Perform the "Actuation Test  " with KDS/GDS.

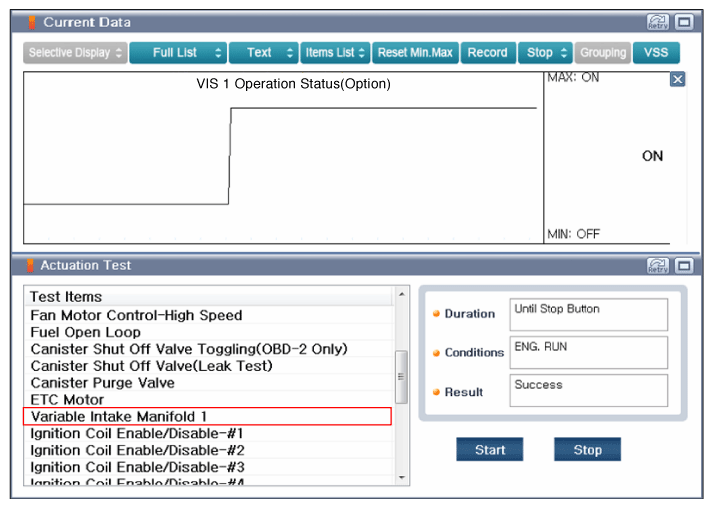

    Fig 1: Scantool Display - Variable Intake Manifold 1 Actuation Test
    G12216040Courtesy of KIA MOTORS AMERICA, INC.
