Monitor KDS/GDS Data

Ignition "OFF", connect KDS/GDS.
Ignition "ON"& Engine "OFF", select "Current Data " mode.
Monitor the "OCS Type2 Real-Time Status" parameter on the KDS/GDS.

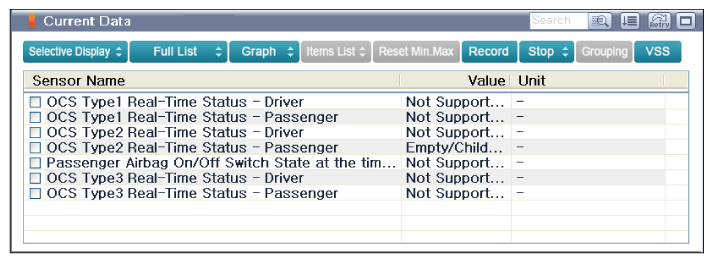

Fig 1: Scantool Display - OCS Type 2 Real-Time Status
Courtesy of KIA MOTORS AMERICA, INC.
Has a problem been found?
YES
- Go to "Wiring Inspection " procedure.
NO
- Fault is intermittent caused by poor contact in the part's and/or Passenger Weight Classification Sensor Mat & ECU connector or was repaired and Passenger Weight Classification Sensor Mat & ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
