Component Location

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

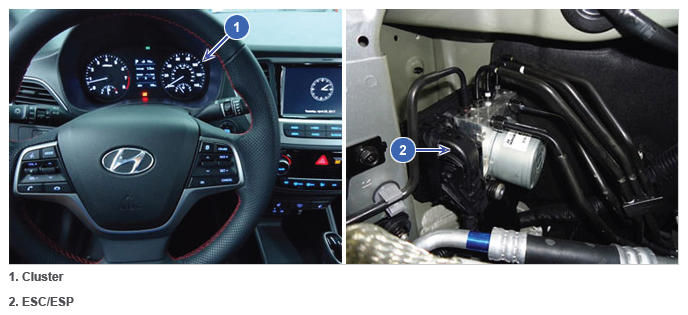

G12593472Courtesy of HYUNDAI MOTOR AMERICA
NOTE: Cluster: "INSTRUMENT CLUSTER"
TPMS (Tire Pressure Monitoring System module): "TIRE PRESSURE MONITORING MODULE"
