[EVAP. Leakage Test]

Select "Evap. Leakage Test".

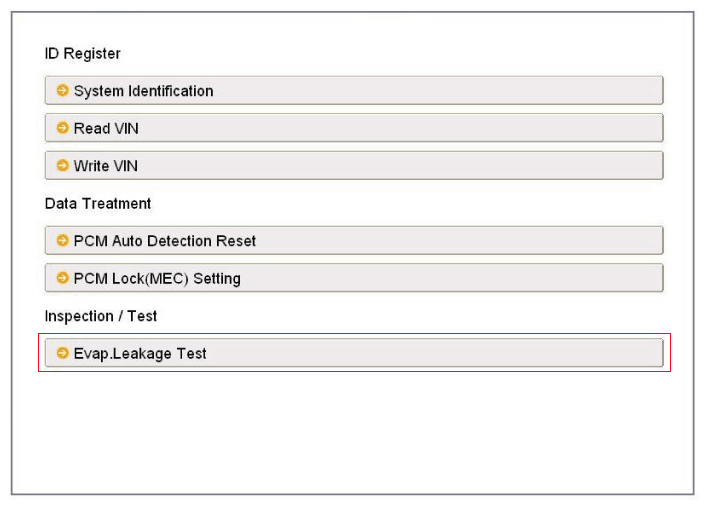

Fig 1: Scantool Display - ID Register
Courtesy of KIA MOTORS AMERICA, INC.
Proceed with the test according to the screen introductions.

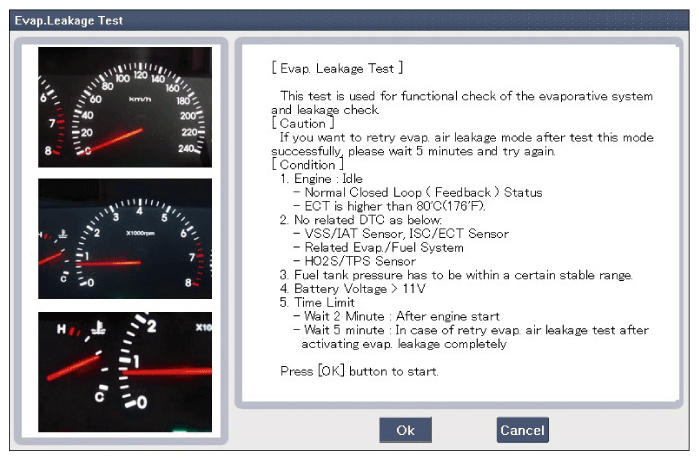

Fig 2: Scantool Display - EVAP Leakage Test
Courtesy of KIA MOTORS AMERICA, INC.
