Monitor KDS Data

Ignition "OFF", Connect KDS to Data Link Connector (DLC).
Shift the gear to the P position & Ignition "ON", and select the "Current Data" mode.
Check the relevant DTC item of Current Data. (Measure the sensor data through test driving if necessary)

Courtesy of KIA MOTORS AMERICA, INC.

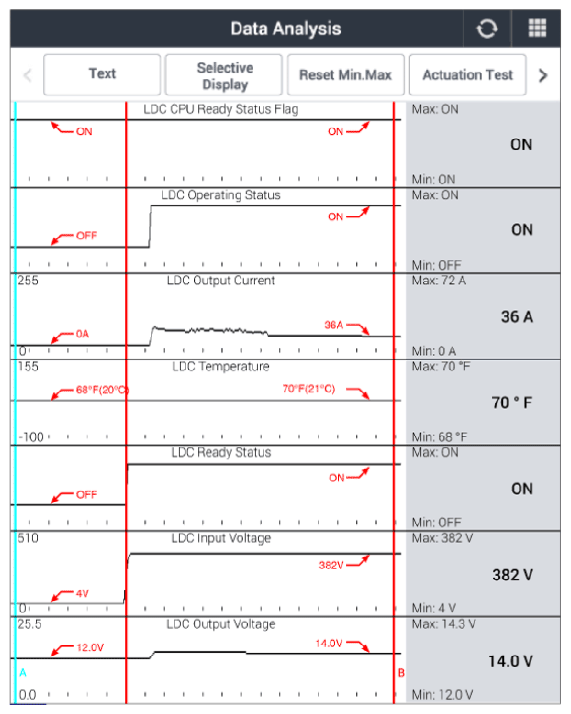

Fig.1 Above) Relevant DTC item of Current Data - Graph Mode: Ignition "ON" & EV Ready Section

Courtesy of KIA MOTORS AMERICA, INC.

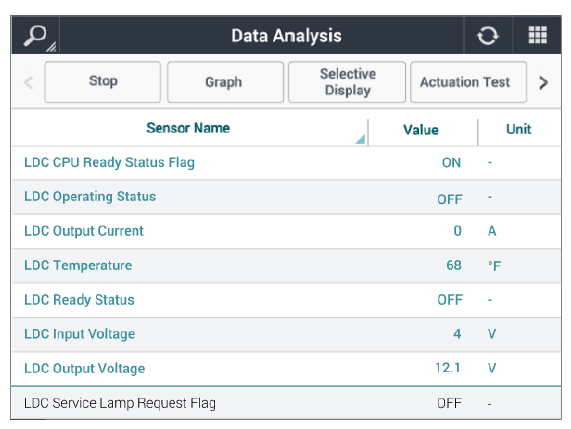

Fig.2 Above) Relevant DTC item of Current Data - Text Mode: Ignition "ON" Section

Courtesy of KIA MOTORS AMERICA, INC.

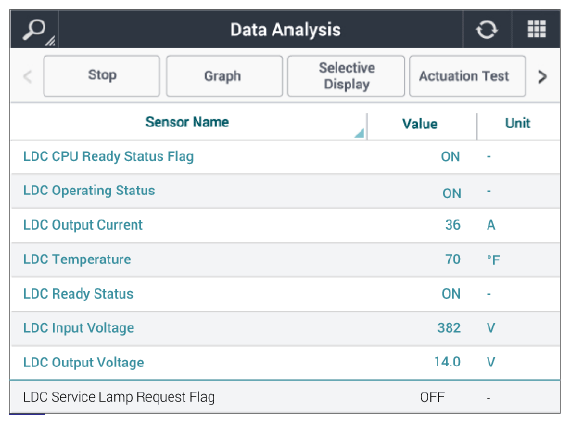

Fig.3 Above) Relevant DTC item of Current Data - Text Mode: Ignition "EV Ready" Section
Is the measured data within specifications?
YES
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  * After replacing the LDC, and electric water pump (EWP), it is necessary to operate the electric water pump (EWP) with KDS and supplement and circulate the coolant.
NO
- Go to "WIRING INSPECTION " procedure.
