Home
>>
Kia
>>
2019
>>
Stinger Base, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Memory Modules
>>
Integrated Memory Seat (IMS) System
>>
Integrated Memory Seat (IMS) Unit
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

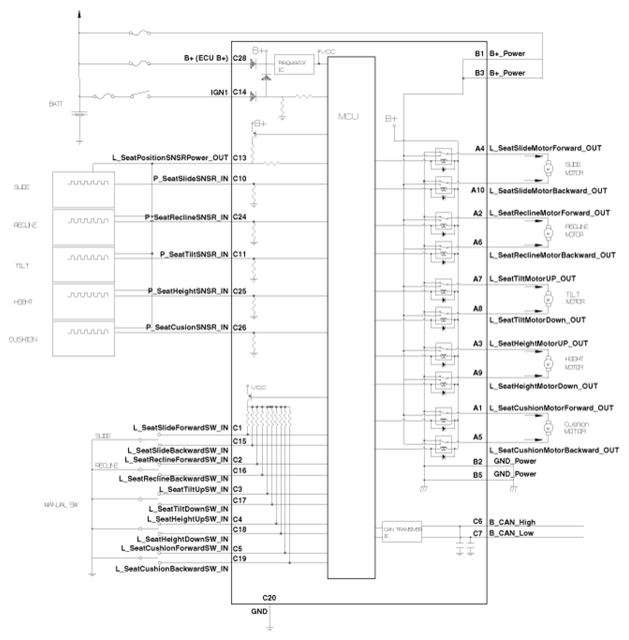

Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
