Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.

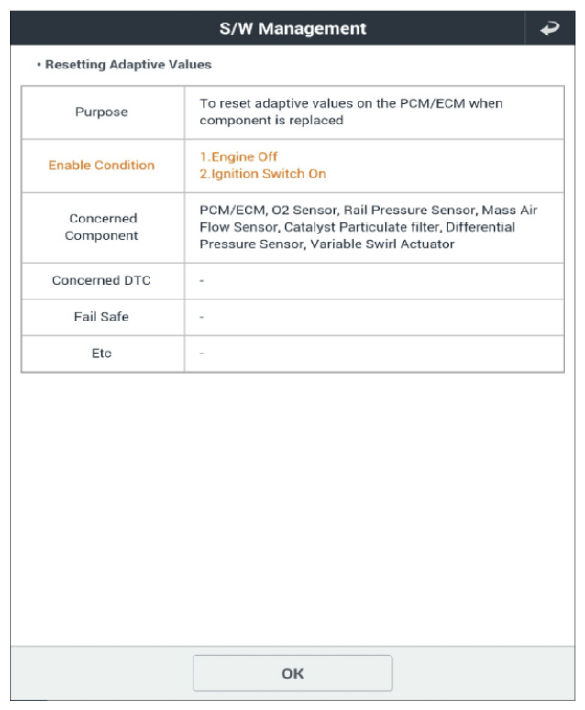

G12780055Courtesy of KIA MOTORS AMERICA, INC.

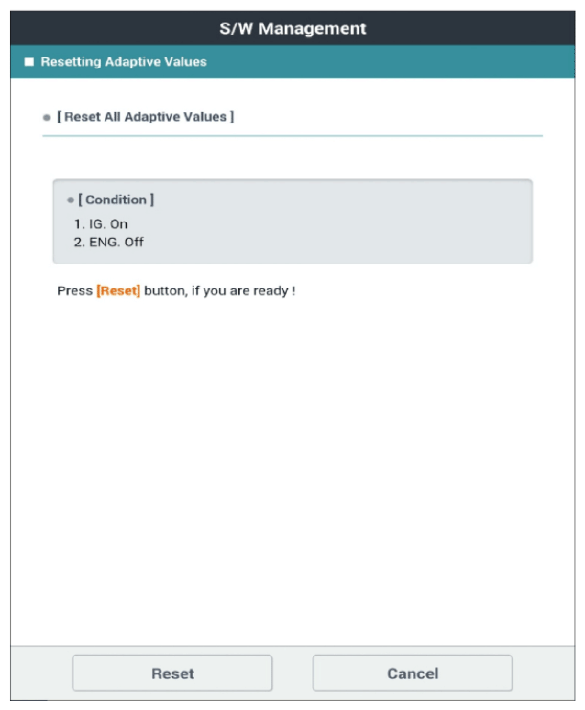

G12780056Courtesy of KIA MOTORS AMERICA, INC.

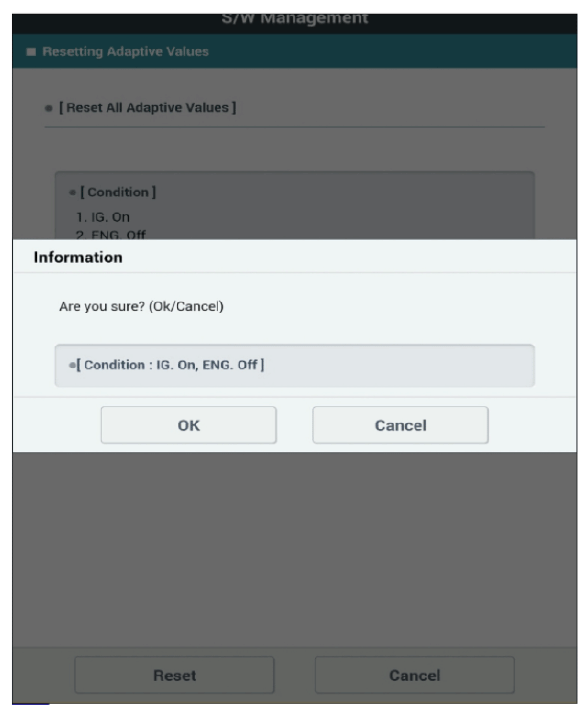

G12780057Courtesy of KIA MOTORS AMERICA, INC.

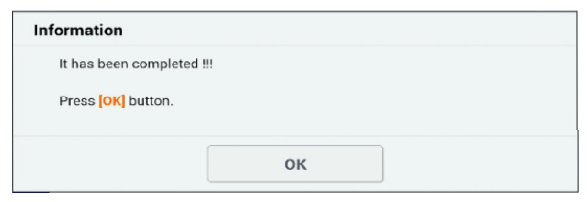

G12780058Courtesy of KIA MOTORS AMERICA, INC.
