Occupant Classification System (OCS) Unit

  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front passenger seat assembly.

    (Refer to " FRONT SEAT ASSEMBLY  ")

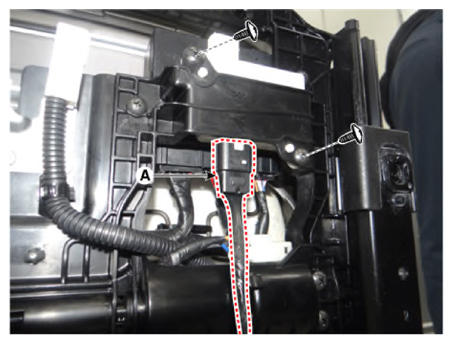

  3. Disconnect the occupant classification system unit connector (A).
    G12791571Courtesy of KIA MOTORS AMERICA, INC.

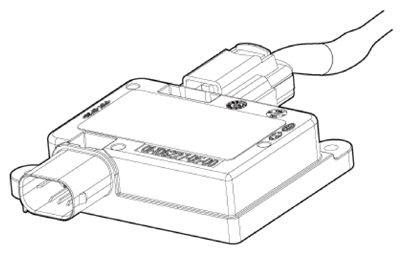

  4. Remove the occupant classification system unit (A) after loosening the mounting screws.
G12791572Courtesy of KIA MOTORS AMERICA, INC.
