Variant Coding Procedure

■ On-Line method on KDS

1. Switch "OFF" ignition, and connect KDS.
2. With ignition "ON" & Engine "OFF", select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.

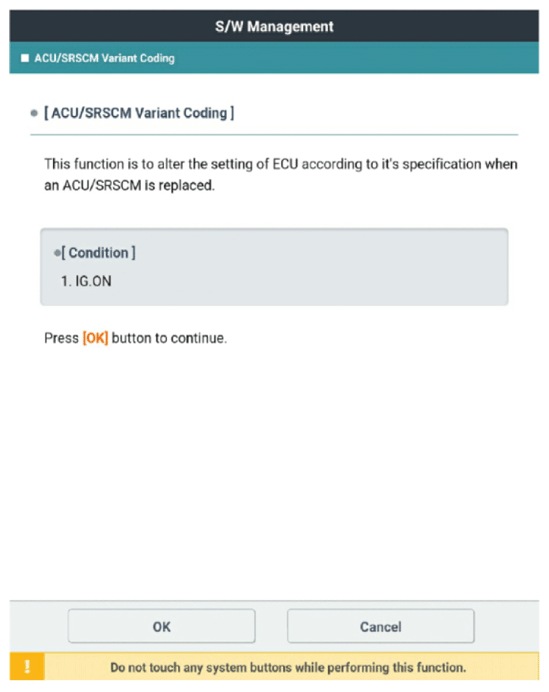

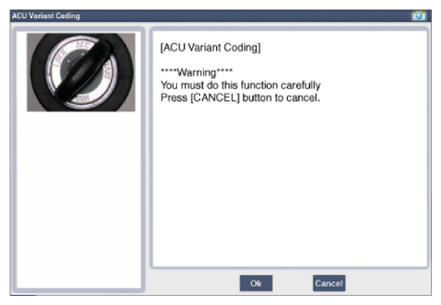

1. Initial ACU Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.

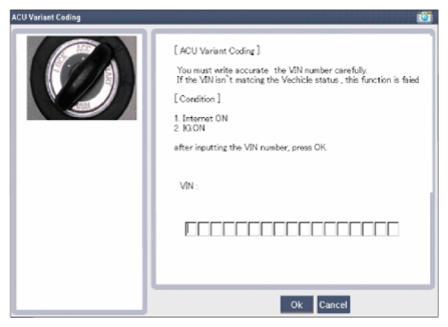

2. Enter VIN Code

   Courtesy of KIA MOTORS AMERICA, INC.

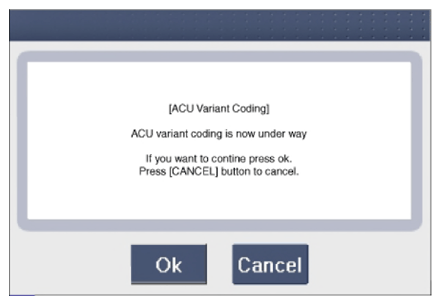

3. Processing variant coding - 1

   Courtesy of KIA MOTORS AMERICA, INC.

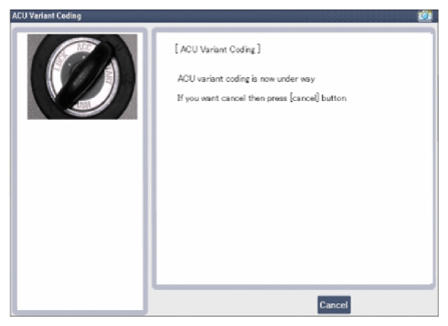

4. Processing variant coding - 2

   Courtesy of KIA MOTORS AMERICA, INC.

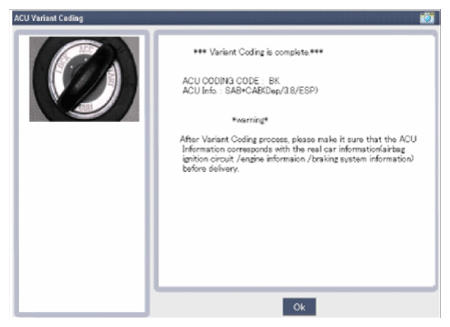

5. Variant coding is completed

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

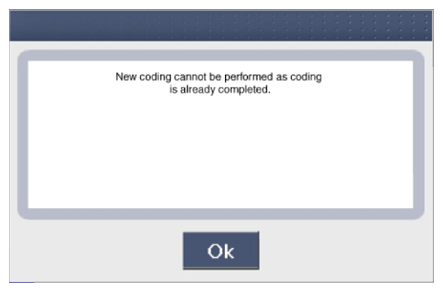

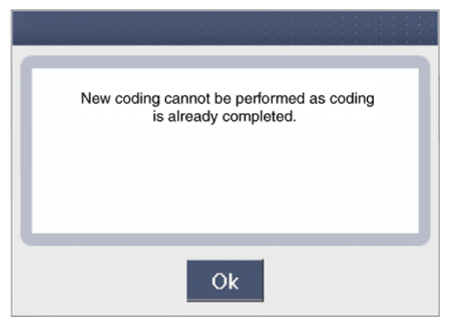

1. This screen is displayed when the variant coding is attempted again on the SRSCM that has already performed variant coding.

   Courtesy of KIA MOTORS AMERICA, INC.

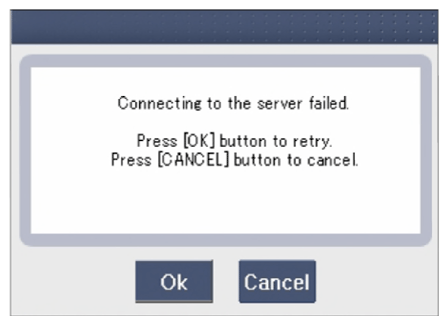

2. Communication failure

Courtesy of KIA MOTORS AMERICA, INC.

■ Offline method on KDS (When internet connection is unavailable)

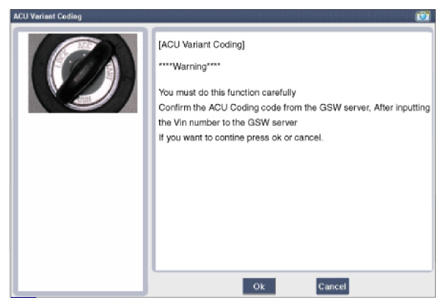

1. Initial ACU Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.

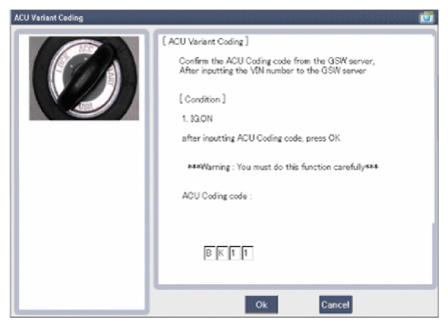

2. Enter ACU Coding Code

   Courtesy of KIA MOTORS AMERICA, INC.

3. Recheck ACU Coding code

   Courtesy of KIA MOTORS AMERICA, INC.

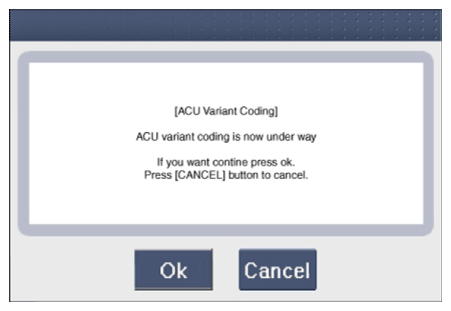

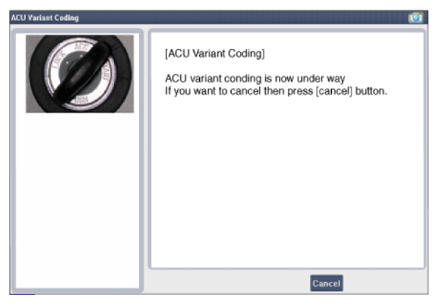

4. Processing variant coding - 1

   Courtesy of KIA MOTORS AMERICA, INC.

5. Processing variant coding - 2

   Courtesy of KIA MOTORS AMERICA, INC.

6. Variant coding is completed

Courtesy of KIA MOTORS AMERICA, INC.
