Repair Procedures: Replacement

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the driver airbag (DAB) module and clock spring.

    (Refer to " DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING  )

  3. Remove the steering wheel.

    (Refer to " STEERING WHEEL  ")

  4. Remove the steering column shroud lower panel.

    (Refer to " STEERING COLUMN SHROUD PANEL  ")

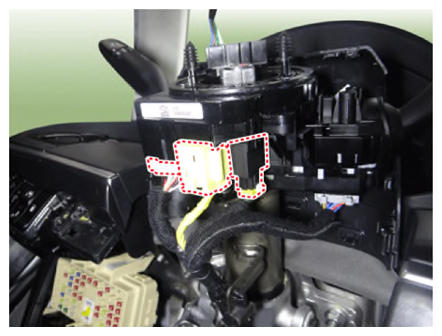

  5. Disconnect the clock spring connector.
    G12795839Courtesy of KIA MOTORS AMERICA, INC.

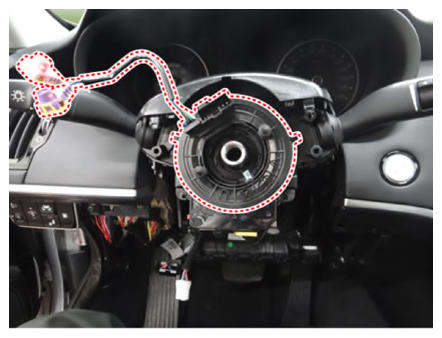

  6. Remove the clock spring from the steering column.
    G12795840Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of removal.
