Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear transverse trim.
(Refer to Body (Interior and Exterior) - " REAR PILLAR TRIM ")
- Remove the luggage side trim.
(Refer to Body (Interior and Exterior) - " LUGGAGE SIDE TRIM ")

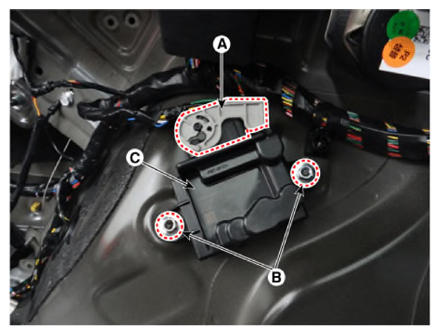

- Disconnect the fuel pump control module connector (A).
- Remove the mounting nuts (B), and then remove the fuel pump control module (C) from the vehicle.
