Components And Components Location: Components

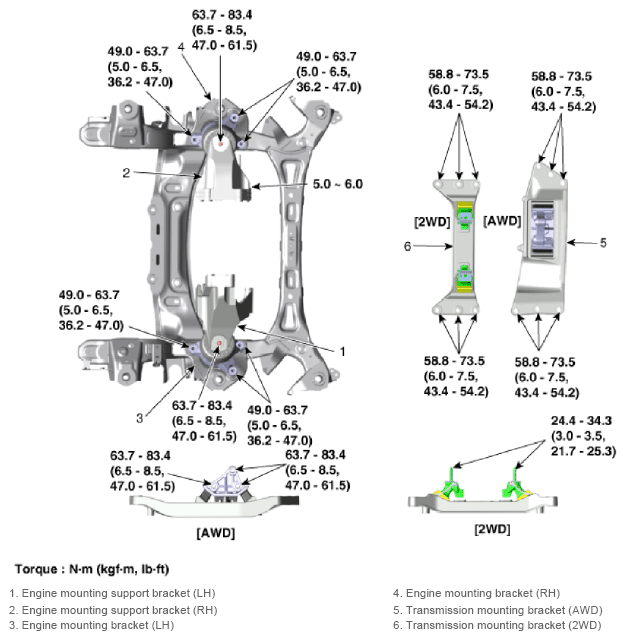

Fig 1: Engine Mounting Components Location With Torque Specification
G12791729Courtesy of KIA MOTORS AMERICA, INC.
