Engine Mounting Bracket

Remove the engine room front under cover and engine room side cover.
(Refer to " ENGINE ROOM UNDER COVER ")
Disconnect the universal joint assembly from the shaft joint.
(Refer to " STEERING COLUMN AND SHAFT ")

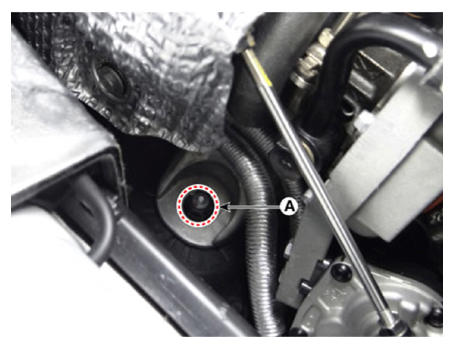

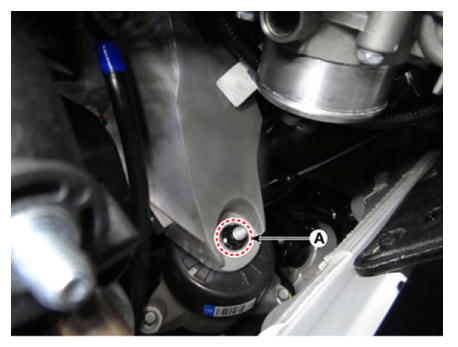

Remove the engine mounting support bracket nut (A).
Tightening torque:

63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

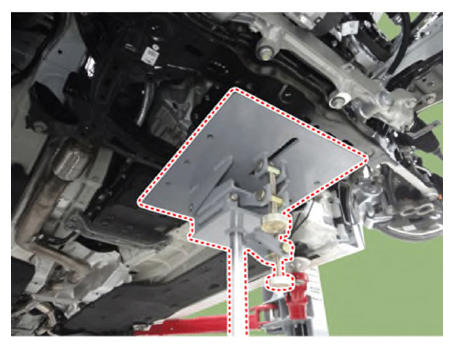

Install the jack to the edge of the oil pan to support the engine.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Put the rubber block between the jack and oil pan to avoid damaging the oil pan.
Lift the engine slightly using the jack to obtain space for removing the engine mounting.

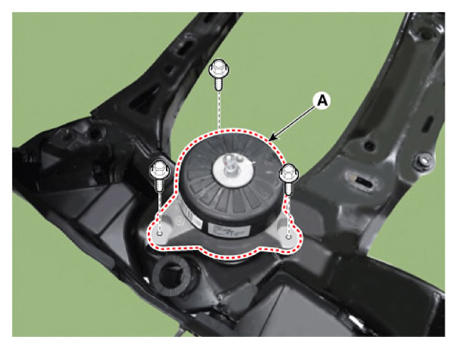

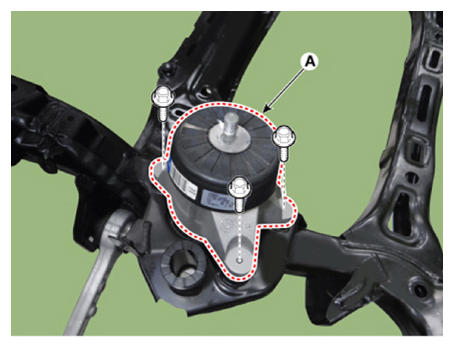

Remove the engine mounting bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
