Repair Procedures: Inspection

Switch "OFF" ignition.

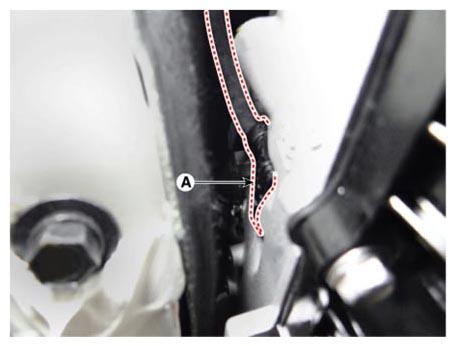

Disconnect the main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Measure the resistance between + terminal (15) and - terminal (16).

Check that the resistance is within the specification.

Item		Specification
Oil temperature sensor	Type	*NTC thermistor
	Temp.[(°C)°F]/Resistance (kΩ)	(-40)-40/139.5
		(-20)-4/47.4
		(0)32/18.6
		(20)68/8.1
		(40)104/3.8
		(60)140/1.98
		(80)176/1.08
		(100)212/0.63
		(120)248/0.38
		(140)284/0.25
		(150)302/0.16
