Monitor DTC Status

Connect KDS to Data Link Connector (DLC).
Ignition "ON".

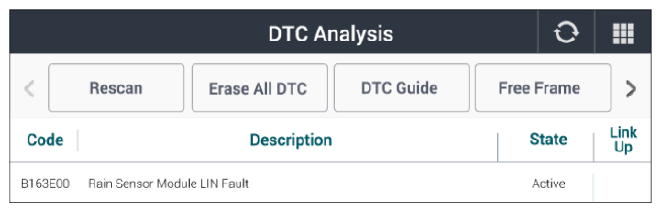

Monitor "Diagnostic Trouble Codes(DTC)" with KDS.

Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in "BCM" or "Rain Sensor's" connector or was repaired and "BCM" memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
